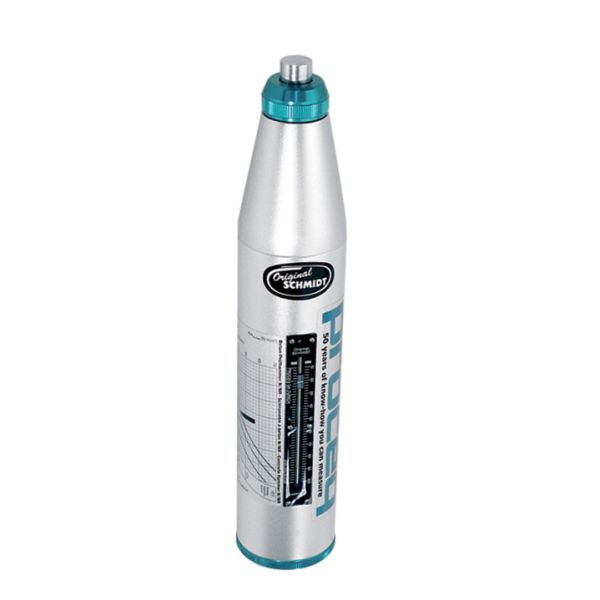

Proceq Original Schmidt Concrete Test Hammer, Type L
€1,924.95
€1,565.00
The Original Schmidt will hit the concrete at a defined energy whereas its rebound is dependent on the hardness of the concrete and is measured by the instrument.
Availability:
In stock
SKU
31003002
Proceq Original Schmidt Concrete Test Hammer, Type L
Measuring range 10 to 70 N/mm² compressive strength (0,735 Nm). Handling and dimensions as for types N and NR, but with a three times smaller impact energy.
These types are used for testing thin walled (< 100 mm) or small components but also cast stone components sensitive to impact. The rebound value is read directly from the scale.
The quality of concrete is mainly judged by its compressive strength directly affecting the load-bearing capacity and durability of concrete structures. Proceq invented the Original Schmidt, the world’s first and now most widely used test hammer for analyzing the compressive strength of concrete properties.
The Original Schmidt will hit the concrete at a defined energy whereas its rebound is dependent on the hardness of the concrete and is measured by the instrument.
The Original Schmidt is available in models with different impact energies, each test hammer designed for a specific test application, in order to meet the needs of the customers to investigate a wide range of material types and sizes, such as bridge decks, thin walls, cast stone components or small components.
Type L Original Schmidt: Handling equals type N, but the type L offers an impact energy three times smaller
Applications
- The Original Schmidt is used for the non-destructive measurement of the concrete/mortar compressive strength characteristics
- Control of uniform concrete quality
- Detection of weak spots in the concrete
- The type L/LR Original Schmidt operates with significant lower impact energy, making this test hammer the ideal option for testing thin walled items with a thickness between 50 to 100 mm (2 in. and 4 in.) or for analyzing small components.
- It is suitable for examining cast stone components which are sensitive to impact. In rock mechanics, the type L/LR Original Schmidt is commonly used for the classification of rock cores and brittle rock
Standardization
The following standards can be applied to the Original Schmidt:
|
Technical Data
| Original Schmidt Type N |
Original Schmidt Type NR |
Original Schmidt Type L |
Original Schmidt Type LR |
|
| Measuring range | 10 - 70 N/mm2 (1'450 to 10'152 psi) | |||
| Impact energy | 2.207 Nm | 0.735 Nm | ||
| Paper strip | No | Yes | No | Yes |
Warranty
- Standard 2-year limited warranty on electronic parts of the Original Schmidt
- Optional extended warranty periods up to 3 additional years
