Inspection Cameras

Why Choose an Inspection Camera for Visual Checks?

A suitable camera can reduce reliance on indirect signs when a concealed area can be reached with a compatible probe. Live feedback allows the user to guide the lens through an opening and examine the visible section of a cavity, machine, void or enclosure. This can inform whether closer examination, controlled access, dismantling or another form of testing is required, while limiting unnecessary disturbance during the initial visual check.

The displayed image remains a visual observation. It cannot diagnose the cause of a fault, confirm structural integrity, locate a water leak or prove that the whole area has been examined. It does not replace dismantling when direct access is required. Its usefulness depends on physical access, visibility, camera-head size, probe position, available lighting and the operator’s ability to guide the lens. Obstructions, bends and restricted movement can leave areas outside the field of view.

What Can an Inspection Camera Be Used For?

Common applications include viewing inside wall cavities, behind fixed components, through narrow openings and within accessible sections of machinery or enclosed equipment. A handheld borescope may suit a close inspection through a small entry point, while an endoscope camera can provide a flexible visual route into a restricted space. A borescope camera with an appropriate head and probe can also help examine internal components without assuming that every surface is visible.

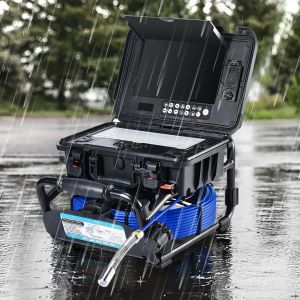

A video inspection camera may support organised inspection notes by saving photographs or footage where the selected model provides recording functions. Captured material documents what appeared within the lens view at that time, but it does not establish the condition of the entire structure or system. Longer reel-based and push-rod equipment intended for internal pipework, drains and flues is covered under Drain, Pipe & Chimney Cameras.

How Do Probe Design and Camera-Head Size Affect Access?

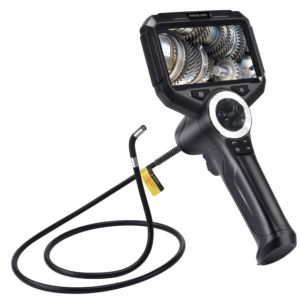

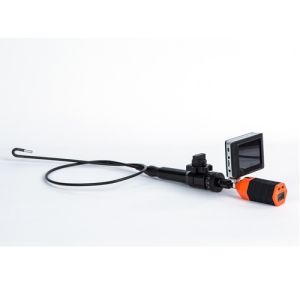

Probe design determines how the camera can be introduced and guided. A flexible probe can bend through suitable changes in direction, whereas an articulating head allows the lens to be deliberately angled where that control is provided. Neither arrangement suits every opening. A smaller camera head may enter a narrower gap, while extra length or flexibility may reach farther into an accessible space. Actual visibility still depends on access geometry, probe control, image performance and lighting.

An inspection camera presents a visible optical image of the area reached by the lens. Thermal Imaging Cameras use a separate method to display temperature differences rather than a standard colour view of a surface. Internal viewing is also separate from Cable & Pipe Location. A specified camera system may work with a compatible sonde or locator arrangement, but this capability is not universal and should never be assumed from the camera function alone.

How to Choose an Inspection Camera for Your Work

Start with the area to be inspected and identify the available entry point, its shape and its smallest clear dimension. Match the required reach to the stated probe length, then confirm that the camera-head diameter can pass through the opening. Consider whether the route needs a flexible probe, an articulating head or a simpler forward-facing arrangement. The intended viewing angle and the amount of control available inside the space are as important as overall probe length.

Next, review how the image will be displayed. Depending on the model, this may involve a built-in monitor or a separate compatible display arrangement. Check screen size, lighting provision, photograph or video recording, working-condition ratings and compatible accessories against the intended task. Features such as adjustable lighting, wireless transfer, interchangeable probes and water resistance vary and must be verified in the specifications. The correct choice is the instrument whose stated design and functions match the planned visual inspection.

Order an Inspection Camera from Celtic Surveys

Celtic Surveys supplies inspection cameras for practical visual checks in concealed and difficult-to-reach areas. We can help you compare probe design, camera-head size, reach, display arrangement and recording capability against the access available and the observations you need to make. Checking these details before ordering helps ensure that the selected equipment is suited to the opening, working conditions and required view.

Need help choosing an inspection camera for your work? Call 01 801 1335 or email sales@celticsurveys.ie for practical product advice before buying.
