Coating Thickness NDT
Non-destructive coating measurement allows paint, dry-film finishes and powder coatings to be checked on suitable substrates without cutting through the applied layer. We provide instruments for metal, automotive and selected concrete applications. A coating thickness gauge gives a numerical reading when its method, probe and operating range are compatible with the surface.
Correct equipment selection depends on the substrate, coating system, required range, probe arrangement, surface geometry and recording needs. Our Inspection Instruments support defined visual, dimensional and material-assessment work across maintenance, manufacturing and site inspections, with each instrument selected for its stated purpose.
Why Use a Coating Thickness Gauge for Non-Destructive Checks?
A coating thickness gauge can measure an applied layer without removing a sample or exposing the substrate, provided the instrument and method suit both materials. Readings from defined positions support manufacturing, maintenance, automotive paint and finished-coating checks. The surface remains intact while results from different locations are compared.
One reading may not represent an entire panel, component or prepared area. The procedure may require several readings at organised positions, followed by comparison or averaging under the applicable method. Probe placement should remain controlled because curvature, edges, roughness and nearby features can influence the result.
The displayed value is a thickness reading within the stated method and range. It does not establish adhesion or hardness, reveal hidden corrosion, identify composition, detect every defect, confirm overall coating condition, diagnose failure, or prove specification compliance. Calibration, verification and the required inspection procedure still apply.
What Does a Coating Thickness Gauge Measure?

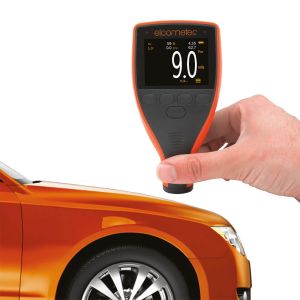

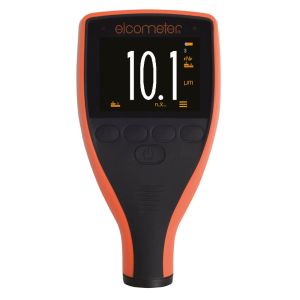

The instrument measures a compatible applied layer, not the base component. A paint thickness gauge or paint depth gauge may be used for selected paint systems, including automotive assessment where specified. A dry film thickness gauge covers dry applied layers, while a powder coating thickness gauge supports cured powder checks where its method and range are suitable. Wet-film measurement requires a different stated method.
On ferrous bases such as steel, suitable instruments may use magnetic-induction measurement. On non-ferrous metals such as aluminium, an appropriate design may use eddy-current measurement. Some instruments are dedicated to one substrate type, while dual instruments support both through the functions stated in their specifications. Other methods may apply to specialised coating and substrate combinations.
The applied finish is measured separately from the base component. A Material Thickness Gauge is used where underlying metal, plastic or another suitable material must be measured. A compatible gauge for coatings on concrete uses a different stated method from metal-focused equipment. Concrete Covermeters serve another purpose where reinforcement position or cover depth must be assessed.
How Do Substrate Type and Probe Design Affect Coating Measurement?
Substrate material is central to selection. A ferrous-only instrument should not be assumed suitable for a non-ferrous base, and dual-substrate capability must be confirmed from the specification. The required measurement range must cover the expected coating, while the selected probe must suit the coating material, substrate and accessible surface area.

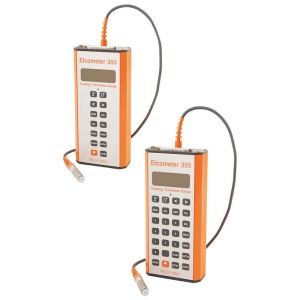

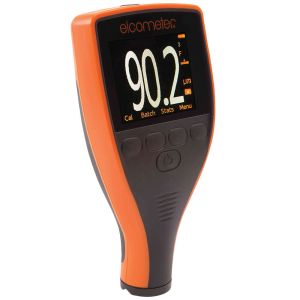

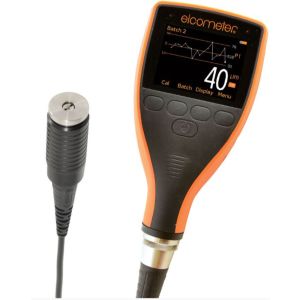

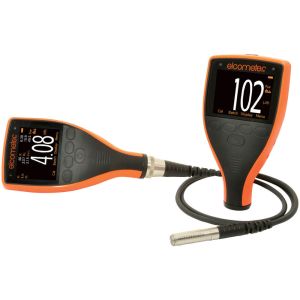

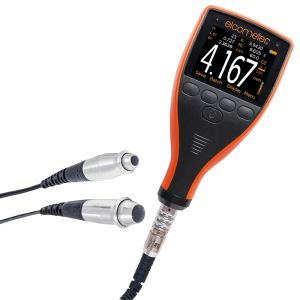

An integral probe keeps the sensing element within the handheld unit for direct checks on accessible areas. A separate probe may improve access to confined, curved or shaped surfaces where designed for that work. Neither arrangement is inherently more accurate. Performance depends on the instrument, probe, setup and inspection method.
Surface curvature, roughness, probe angle and position, edge effects and nearby features can alter readings. Calibration or adjustment should follow the stated procedure, using compatible foils, standards or accessories where specified. Surface-profile gauges separately assess prepared surface texture. A profile result is not a finished coating-thickness result and does not confirm preparation quality.
How to Choose a Coating Thickness Gauge for Your Work
Begin with the substrate and coating. Confirm ferrous or non-ferrous compatibility, the measurement range, and whether an integral or separate probe suits the surface shape and available access. Then check whether the specification covers the intended dry-film, powder-coating or automotive paint application. Concrete-coating capability must be verified specifically and should never be inferred from compatibility with metal substrates.

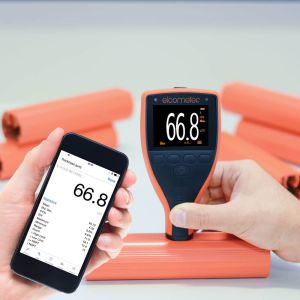

Recording requirements can narrow the choice. Depending on the selected model, memory and data logging can retain readings, while Bluetooth or report transfer may support review. These functions are not universal. Check storage, transfer and software requirements, compatible accessories, and the required calibration, adjustment and verification process.

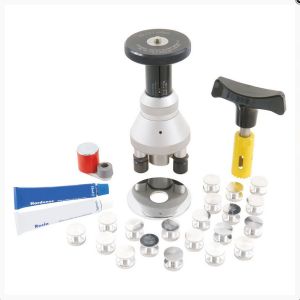

Thickness does not show how securely a coating is bonded. Where the inspection concerns the bond between a coating or repair material and its substrate, Adhesion & Bond Strength equipment supports a separate test. The correct choice is the instrument-and-probe combination whose stated method matches the coating, substrate, access conditions and inspection objective.
Order a Coating Thickness Gauge from Celtic Surveys
Celtic Surveys supplies instruments for selected paint, dry-film, powder-coating, automotive and compatible concrete-coating measurements. We can help you compare substrate compatibility, probe arrangement, range and recording functions so the equipment matches the inspection task and supporting procedure.
Need help choosing a coating thickness gauge for your work? Call 01 801 1335 or email sales@celticsurveys.ie for practical product advice before buying.
