Sound Measurement
Sound measurement records sound pressure levels under defined conditions for documentation and comparison. Sound level is expressed in decibels, or dB, on a logarithmic scale. A sound level meter detects pressure changes at its microphone using selected settings. Decibel meter and noise level meter are also common terms, but the name alone does not confirm supported functions or standards.
Readings are relevant in workplaces, buildings, plant areas, construction settings and outdoor locations. Within our Environmental Monitoring equipment, we supply Wöhler and Cirrus Research instruments for different acoustic measurements. Each records conditions at its microphone at a stated time, without judging the source or its acceptability.
Why Is Sound Measurement Important?
Human hearing adapts to changing conditions, while perceived loudness varies with frequency, duration and background sound. Listening may identify a change or unwanted tone but cannot produce an objective value. Measurements support comparisons between locations, operating conditions and periods.
Noise measurement supports comparisons before and after machinery servicing, alarm checks and readings across a working area. For repeated checks, consistent microphone position, settings and duration support a useful comparison. Changes in activity or source output still matter.
A brief reading represents only the period observed. Steady sound may suit a short comparison, while fluctuating or recurring noise often requires a defined interval. Formal exposure, nuisance or compliance assessments require the applicable criteria and method rather than one isolated result.
What Are the Main Sound Measurements?
Sound pressure level, or SPL, describes pressure changes produced by sound waves relative to a reference pressure. Because decibels use a logarithmic scale, the difference between readings is not a linear change in acoustic energy. Weightings also affect the displayed value.
Instantaneous sound level shows the current time-weighted result. Minimum and maximum record the lowest and highest levels, with maximum commonly written as LMax. Peak differs because it captures the highest instantaneous pressure from a short event rather than the highest time-weighted level. The meter must specifically support peak measurement.
Equivalent continuous sound level, or Leq, expresses average acoustic energy across a period as an equivalent steady level. An integrating meter calculates it rather than leaving you to estimate from a changing display. Duration remains part of the result because different periods are not equivalent.
A and C frequency weightings change the response across frequencies. Fast and Slow time weightings control the indicated response. No single setting answers every acoustic question, and a basic meter does not necessarily calculate Leq, peak or exposure-related values.
Where Is Sound Measurement Used?
Sound readings support machinery comparisons, alarm checks, plant-room observations and reviews of occupied areas. They show differences between positions or operating states. Air Quality requires separate sensors and methods, even when sound and ventilation are considered together.
In offices, public buildings and accommodation, readings can compare rooms, services or background conditions. Light Measurement addresses illumination independently, so it does not describe sound in the same space. Equipment operation and microphone position give later comparisons context.
Construction locations, outdoor sites and community settings introduce changing sources and background sound. Timing, traffic and nearby activity alter results between periods. Temperature is a separate parameter and does not replace acoustic data, although weather details may form part of the site record.
What Affects Sound Measurement Results?
Microphone position, height and distance from the source affect the recorded level. Walls and nearby objects reflect sound, while barriers may screen it. Holding the meter can shield the microphone or introduce handling noise. Consistent position and orientation support clearer comparisons.
Background sound contributes to the level at the microphone. Machinery, conversations, alarms or brief external events may influence a reading intended to represent another source. Outdoors, wind creates microphone noise, while rain may affect the measurement or equipment. A compatible windshield reduces wind effects but does not remove every weather influence.
Instrument condition and settings also shape results. Battery status, microphone condition, calibration, measurement range, weightings and duration all matter. Field checks normally use a compatible acoustic calibrator, while periodic calibration follows the applicable procedure. Phone applications may indicate change but do not replace suitable calibrated equipment for formal measurements.
Order Sound Measurement Equipment from Celtic Surveys
The required values establish the relevant specification. Key details include measurement range, accuracy, instrument class, weightings, integrating capability, LMax, peak and Leq functions, calibration arrangements, outputs and supplied accessories. Recording or transfer functions should be confirmed from the product information.

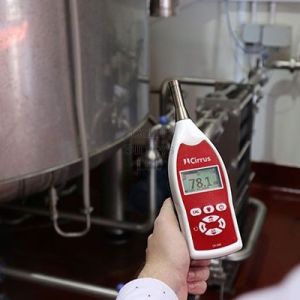

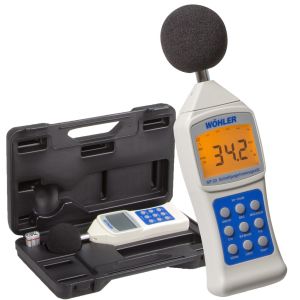

The Wöhler SP 22 supports general checks with A and C filters, Fast and Slow response, maximum hold, selectable or automatic ranges and continuous data transfer. The Cirrus Research CR:310 is a Class 2 integrating meter that records SPL, LMax and C-weighted peak alongside Leq and Leq8h, with A and C frequency weightings and Fast and Slow time weightings. They address different requirements rather than acting as interchangeable versions of the same meter.
We can compare the stated functions with your measurement period, required values, calibration needs and site conditions. Need help choosing sound measurement equipment for your work? Call 01 801 1335 or email sales@celticsurveys.ie for practical product advice before buying.
