Hardness Testing
Hardness testing assesses how a suitable material responds to impact, rebound or indentation, according to the selected method. The selected equipment produces a method-specific indication that can support comparison, checking and records. The result must always be interpreted against the material, test conditions and stated measurement range.
Concrete rebound hammers assess surface response, while a portable hardness tester assesses suitable metal components through rebound or indentation methods. These are separate forms of testing with different outputs. Equipment varies by measurement method, impact energy, probe arrangement, test range, supported scales and recording functions. Both form part of our Inspection Instruments for professional material assessment.
Why Use a Hardness Tester for Concrete and Metal Assessment?
Method-specific readings can support comparison between suitable areas or components, routine quality checks, maintenance assessment and organised material records. Portable equipment can also help professionals collect information where an item is installed, difficult to move or too large for a fixed laboratory machine. Consistent records can help teams compare later readings with earlier findings when the same method and suitable conditions are maintained.
On concrete, rebound numbers can help compare surface response and identify variation across selected test areas. They relate mainly to the condition and hardness of the tested surface. They do not directly establish compressive strength, structural capacity or the condition of an entire element. Any strength estimate requires a suitable correlation.
For metal components, portable readings can provide a value on a supported scale under the selected method. Concrete rebound numbers and metal hardness scales describe different responses and are not equivalent. Leeb and Rockwell results must also remain method-specific, with any conversion dependent on material, settings and instrument capability.
What Does a Hardness Tester Indicate?

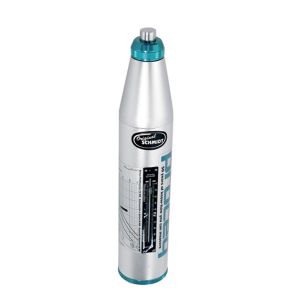

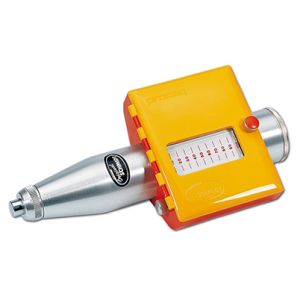

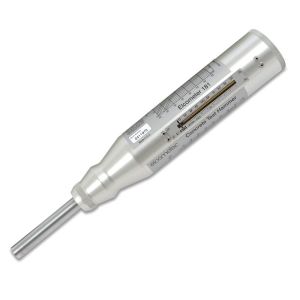

A Schmidt hammer applies a controlled impact to a concrete surface and measures the rebound response. The resulting number supports comparison between suitable test areas, including checks for surface uniformity. It is a surface-focused indication, not direct proof of concrete compressive strength or structural adequacy.
Concrete readings can change with surface texture, moisture, carbonation, age, aggregate type, mix composition and finishing. Impact direction, test position, edges, local defects, member thickness, reinforcement, temperature and instrument condition can also affect the response. Estimates based on rebound values are valid only where a suitable correlation and professional interpretation are available.

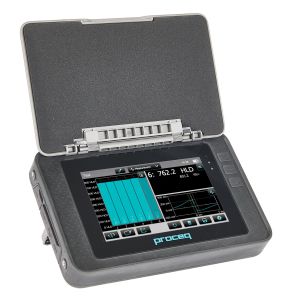

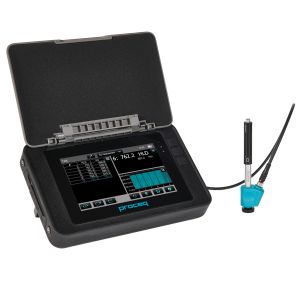

A Leeb hardness tester measures the rebound behaviour of an impact body on a suitable metal surface using impact and rebound velocity. Its value relates to the selected impact device, material and test conditions. This principle and its supported scales must not be confused with concrete rebound numbers or indentation-based metal results.
Where Are Concrete and Portable Metal Hardness Tests Used?
Concrete rebound testing may be used on suitable slabs, walls, columns, beams, precast components and repair areas. It can support comparative surface checks during construction review, maintenance assessment or condition surveys. Readings may show variation that needs further assessment, but do not by themselves confirm structural adequacy or determine repairs.

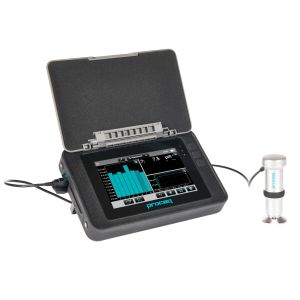

Portable metal equipment can assess suitable components in manufacturing, fabrication, maintenance and quality control. Typical applications may include installed machinery, large fabricated parts and components that are impractical to move. A portable Rockwell hardness tester measures indentation depth under controlled test forces, where suitable for the material and component.
Method suitability depends on material type, expected hardness, component mass and thickness, curvature, surface finish, support conditions, test direction and probe type. Small or thin parts may require suitable support. Previous treatment can also influence results, so records should identify the method and conditions rather than treating every reading as interchangeable. Method-specific documentation supports review by engineers, inspectors and quality personnel.
How to Choose a Hardness Tester for Your Work
For concrete applications, consider impact energy, stated range, permitted orientations and instrument size. Analogue or digital indication, data storage and recording functions may affect how results are managed. Accessories and verification documentation should also match the intended professional use, while instrument condition must remain suitable for dependable comparative readings.
For metal applications, select between Leeb rebound and portable Rockwell indentation according to the required measurement. Review compatible impact devices, indenters or probes, supported scales, test range and component requirements. Where the instrument provides scale conversion, the function remains dependent on the material, method and settings. Display, storage, software and portability can support efficient field records.
The selected method must suit the material, expected range, component geometry, surface condition, access location and required result format. No single instrument suits every material or component. Some indentation and impact methods may leave a small mark, so hardness testing should not automatically be described as fully non-destructive.
Order a Hardness Tester from Celtic Surveys
Celtic Surveys supplies equipment for selected concrete rebound and portable metal hardness applications. We can help match the measurement method, test range, impact device or probe, component requirements and recording functions to the work. Selection should reflect the property being assessed and the format needed for clear, method-specific records.
Need help choosing a hardness tester for your work? Call 01 801 1335 or email sales@celticsurveys.ie for practical product advice before buying.
