Cable & Pipe Location
Cable and pipe locating equipment helps identify and trace detectable underground services before excavation, drilling, maintenance or investigation work. A cable and pipe locator responds to a compatible signal or locating arrangement, helping an operator establish an indicated route without suggesting that the scan proves the ground is clear.
Equipment selection depends on the service type, available signal, locating method and working area. The receiver may need a compatible transmitter, clamp, sonde, tracing rod or reel. Our Inspection Instruments support practical visual, measurement and location work across building inspections, maintenance tasks and site assessments.
Why Use a Cable and Pipe Locator Before Ground Work?
An organised investigation starts with current service drawings and site records, followed by visual inspection and systematic scanning of the proposed excavation, coring or drilling area. Where supported, passive detection can identify selected signals already present on electrical cables or conductive services. Active locating uses a compatible transmitter or accessory to apply a signal that the receiver can trace.
A cable and pipe locator cannot detect every service, confirm that a cable is live or safe to approach, or guarantee that a strike will not occur. Displayed routes and depth estimates, where supported, remain indications rather than guaranteed positions.
Once an indicated route has been checked, suitable Marking equipment can show its surface position for site records and controlled work. Where the route needs to be related to fixed site features, measuring equipment can help record offsets and distances without verifying the service or establishing a surveyed position.
How Does a Cable and Pipe Locator Detect and Trace Services?

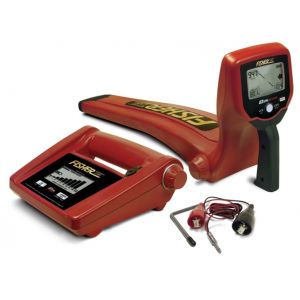

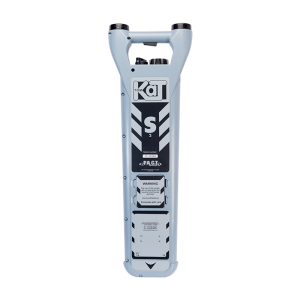

A passive method responds to selected signals already present on a service where the receiver offers the relevant mode. An active method applies a compatible frequency through direct connection leads, induction or an approved clamp arrangement. The selected cable detector, cable avoidance tool or pipe and cable detector must match the signal source, available access and intended locating method.
Results can be affected by signal strength, service depth, soil conditions, interference, nearby conductors, parallel services, settings and operator technique. Several close lines may produce difficult indications, while non-conductive pipe requires a compatible tracer, sonde or other stated arrangement.
Where the task is to find selected metallic objects, covers or markers rather than trace a service signal, Metal Detectors use a different detection method. Rebar, Wall Tie & Stud Locators are designed for compatible reinforcement, wall ties, studs and other specified elements concealed within walls or structures.
What Do Transmitters, Signal Clamps and Sondes Add?

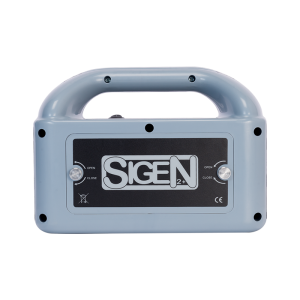

A compatible transmitter or signal generator can apply an active signal where passive detection is insufficient and the receiver-service arrangement permits it. Direct connection requires suitable access and leads. Induction can introduce a signal without physical connection, while a signal clamp may apply one to an accessible line without direct metal-to-metal contact.
An underground services locator setup must use compatible frequencies, connection methods and accessories. The equipment should be operated in line with its instructions and the procedures applying to the site.

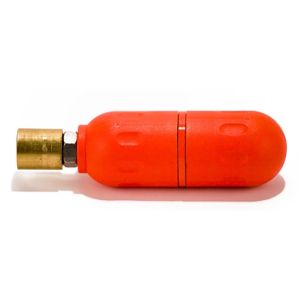

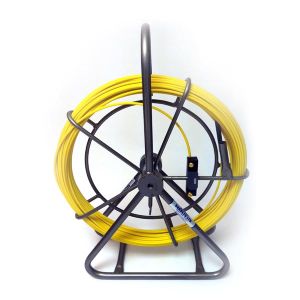

A compatible sonde can be passed through an accessible pipe, drain or duct using a suitable flexible rod or reel, allowing its indicated position to be followed from above ground. Frequency compatibility, available access, insertion distance and receiver configuration should be confirmed before use. Non-conductive pipe material is not automatically detectable.
A locator indicates the sonde position, while Drain, Pipe & Chimney Cameras provide a separate visual inspection method inside accessible pipework or flues. Inspection Cameras can provide an image through a suitable opening but do not trace an underground route. Route tracing does not locate a water escape. A compatible locating arrangement may indicate the pipe route, while Water Leak Detection equipment supports the separate investigation of suspected leakage.
How to Choose a Cable and Pipe Locator for Your Work
Begin by identifying the service being investigated and whether the work requires passive scanning, active signal application or sonde tracing. Check the receiver modes and supported frequencies, followed by compatibility with direct connection leads, induction methods, signal clamps, sondes, tracing rods and reels.
Where depth estimation, data logging, GPS or record transfer is required, confirm that the selected model and configuration support those functions. Working conditions, interference, power supply, transport and accessory requirements should also be considered before ordering.
The correct choice is the receiver, transmitter and accessory combination whose stated functions match the intended locating method. Use it with current drawings, permits, repeated scanning where required, safe-digging procedures, trial holes and controlled excavation. Indicated positions do not establish exact routes, depths, materials or ownership.
Order a Cable and Pipe Locator from Celtic Surveys
Celtic Surveys supplies cable and pipe locators, signal transmitters, clamps, sondes, tracing rods and compatible accessories for practical underground-service tracing. We can help match the receiver, locating method, supported frequencies and required accessories to the work being planned.
Need help choosing a cable and pipe locator for your work? Call 01 801 1335 or email sales@celticsurveys.ie for practical product advice before buying.
