Rebar, Wall tie & Stud Locators
Rebar, wall-tie and stud locators are inspection instruments used to identify compatible concealed metallic elements within concrete and other suitable structures. Their principal role is locating steel reinforcement in slabs, walls, columns and similar concrete elements. A rebar locator can indicate the presence and approximate position of reinforcement where its detection range and search head support a reliable response. Certain instruments can also indicate wall ties or metallic studs, although these remain secondary, specification-dependent applications.
Available equipment differs in detection range, search-head arrangement, concrete-cover capability, bar-size estimation, recording functions and supported target type. Standard and alternative heads can address different access conditions or depth ranges. Rebar locators form part of our Inspection Instruments for assessing concealed reinforcement and specified metallic elements within suitable structures. The appropriate specification depends on the intended target and inspection application.
Why Use a Rebar Locator for Concrete Inspection?
A rebar locator supports concrete assessment, building maintenance, renovation planning, repair assessment and structural investigation by providing non-intrusive information about compatible reinforcement. It can assist with assessing reinforcement positions in slabs, walls and columns, helping project teams organise further investigation around the indicated arrangement. As a handheld reinforcement detector, it also supports focused examination where construction information is limited.
Indicated reinforcement information may inform planning before controlled drilling, cutting, sampling or repair work. It can help identify areas requiring closer review and provide measurement records where the selected equipment supports storage or reporting. However, an indication does not prove safe clearance for intrusive work, reveal every bar or produce an exact reinforcement drawing. It cannot confirm structural adequacy, load-bearing capacity, concrete quality or the complete reinforcement layout, and it does not replace construction drawings, intrusive verification or engineering assessment.
What Can a Rebar Locator Indicate?
A compatible rebar scanner may indicate reinforcement position and provide information about bar direction or orientation. Depending on the selected instrument and search head, it may also measure concrete-cover depth, estimate bar size or store readings for later reporting. These functions are not universal. Bar-size information remains an estimate where specified, while recorded measurements reflect instrument responses rather than a complete description of the concealed structure.

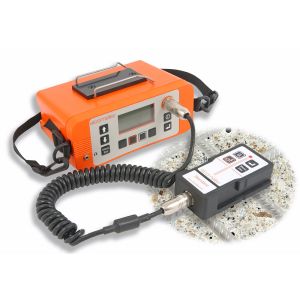

A concrete cover meter combines reinforcement location with cover-depth assessment where that capability is supported. Our Concrete Covermeters include equipment intended for locating compatible reinforcement and assessing cover depth where the selected instrument provides those functions. A covermeter may use standard or alternative search heads suited to stated depth ranges or access conditions. Wall-tie or stud indications are relevant only where the instrument specification and fitted probe identify those targets; general reinforcement detection should not be assumed to provide either function.
How Do Depth, Bar Spacing and Nearby Metal Affect Detection?
Reinforcement depth influences the strength and clarity of an indicated response, while bar diameter, orientation and the stated instrument range can affect detection capability. Closely spaced bars, overlapping reinforcement layers and mesh may create combined or overlapping indications that make individual elements harder to distinguish. Nearby metallic objects can also influence a response. One assessment therefore cannot confirm every bar, separate every reinforcement layer or establish the complete arrangement within a concrete element.
Concrete composition, surface shape, edges, corners, curved areas, coatings and finishes may further affect instrument performance or reading interpretation. Search-head design, equipment setup and operator technique are additional variables, and no system works through every concrete thickness or detects non-metallic reinforcement automatically. Some configurations accept half-cell accessories for separate potential measurements. This is an additional function requiring suitable accessories and does not by itself diagnose corrosion, measure corrosion rate, establish reinforcement condition or confirm structural safety.
How to Choose a Rebar Locator for Your Work
Suitable equipment depends on the expected target, anticipated depth range and required measurement information. Relevant differences include concrete-cover capability, specified bar-size estimation, search-head type, available surface access and reinforcement spacing. Display arrangement, memory, data storage and reporting functions may matter when readings need to be reviewed or incorporated into project records. Available specifications may also differ in half-cell compatibility, included accessories, environmental ratings, and carrying and protection arrangements.
Search-head size and design can suit different access conditions, surface forms and depth ranges, but no arrangement is universally better. A smaller or specialised probe may address a particular physical constraint, while a standard head may match routine handheld reinforcement assessment. Wall-tie or stud capability is a separate, specification-dependent function rather than a standard feature of general rebar-location equipment. The final selection should match the target material, required range, cover-depth needs, recording requirements and planned application.
Order a Rebar Locator from Celtic Surveys
Celtic Surveys supplies equipment for selected reinforcement-location, concrete-cover and concealed-metal assessment applications. We can help match the detection range, search-head arrangement, cover-depth capability and recording functions to the intended work, while accounting for the stated target type, available accessories and expected inspection conditions.
Need help choosing a rebar locator for your work? Call 01 801 1335 or email sales@celticsurveys.ie for practical product advice before buying.
