Folding Rules

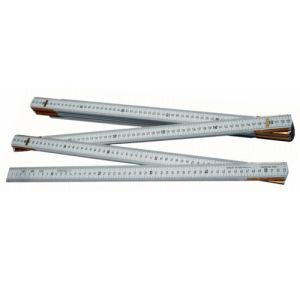

A folding rule consists of rigid graduated sections connected by hinged joints. It provides direct linear measurement between accessible points when the required sections are opened into a usable measuring edge. Subject to its stated length and graduations, it can measure length, width, height, accessible depth, opening dimensions, components, internal room details and short setting-out references.
Available folding rules vary by opened length, number of sections, graduations, material, joint arrangement and folded size. A rule may use metric or dual-scale markings, depending on the selected design. These instruments complement our Distance Measurement / Monitoring equipment by providing a direct, contact-based option for suitable building, workshop, installation and maintenance dimensions where both reference points are accessible.
Why Use a Folding Rule for Direct Measurement?
A foldable ruler gives a rigid measuring edge for short and medium dimensions across walls, floors, frames, openings, components and workshop items. Its sections can bridge selected flat surfaces with less local bending than a flexible line. This can be useful where a tape could twist, sag or need extra support, although the condition of the tool and the surface still influence the reading.
For dependable direct measurement, the foldable ruler needs to form a suitably aligned edge, without assuming full rigidity across every opened span. Repeated folding and site use can wear hinges over time. Loose joints, sections that do not align fully, bent members, dirt within joints or damaged ends can affect the indicated dimension. Hinge wear may become more significant as additional sections are opened. This tool does not measure remotely, follow long ground routes or establish survey control.
What Can a Folding Rule Measure?
A metric folding rule can record dimensions in millimetres and centimetres, subject to its stated graduations and opened length. Suitable tasks include checking the length and width of components, the height of accessible features, the depth of reachable recesses, and clear opening dimensions. One metric folding rule may provide a different total length or section arrangement from another, so the usable span must be matched to the work. Both reference points must remain physically accessible.
An unclear start or end point can make a direct reading uncertain. Damaged ends, faded or worn graduations, surface irregularity, movement during measurement and an oblique viewing angle can also affect the result. Moisture and temperature effects on the rule material may introduce further variation. The total length being measured matters, particularly when several hinged sections are involved. This rigid tool does not directly measure angles, level, gradient, area, volume, circumference or coordinates, and it cannot measure beyond its opened length.
Where Are Folding Rules Used?
Building and construction teams use rigid sectioned rules for accessible dimensions during fit-out, window and door installation, fabrication and property maintenance. In carpentry and joinery, a carpenter's folding rule can support checks on timber, cabinets, frames and finished openings. The phrase carpenters folding rule describes the intended trade use, while material, graduations and hinge design still vary between selected rules. Similar contact-based checks may assist with internal room details and short setting-out references.
The name folding metre rule is often applied to metric designs, but it should not be taken to mean that every rule opens to exactly one metre. A folding metre rule must be selected by its stated overall length and section layout. For longer direct measurements or a flexible graduated line, Measuring Tapes provide a separate method. Where physical contact with both points is limited, Laser Distance Measurers support remote straight-line measurement to a suitable visible target.
How to Choose a Rigid Rule for the Work
Selection starts with overall opened length, number of sections and individual section length. Metric or dual-scale graduations should match the required measurement unit and reading detail. Graduation clarity, section width, end markings and rule material affect visibility, handling and contact with the measured surface. Hinge construction, joint stiffness and any locking action included in the design influence how the sections hold their position. Folded dimensions should also suit the available tool storage.
The selected design should suit the expected dimension, available working space, environment and frequency of use. Moisture resistance and tolerance of routine site wear matter where suitable for the working conditions, while folded size affects portability and storage. Material response to temperature can also influence a reading. No single length, material or joint arrangement suits every application, and condition should be considered whenever repeat use has affected the sections, ends, joints or markings. The choice should reflect both measurement needs and routine care.
Order a Folding Rule from Celtic Surveys
Celtic Surveys supplies folding rules for selected building, construction, carpentry, joinery, fit-out and maintenance applications. We can help match the opened length, section arrangement, graduations, material and joint design to the intended work. Selection should also recognise the space available, likely site exposure and storage requirements, so the chosen instrument is suited to the dimensions and working conditions.
Need help choosing a folding rule for your work? Call 01 801 1335 or email sales@celticsurveys.ie for practical product advice before buying.
