Visual Inspection
A Wöhler inspection camera provides a visible view of internal surfaces through a suitable opening. An illuminated camera head sends an image to a display, allowing otherwise hidden sections to be examined without immediately opening the surrounding structure. The image represents only what is visible within the camera’s field of view at that position and time.
Wöhler systems use different camera heads, push rods and cable arrangements for varied inspection routes. The right combination depends on the opening, internal dimensions, required distance, bends and type of view needed. These differences influence how far the head can travel, how it handles changes in direction and which internal surfaces can be brought into view. Our Wohler Inspection Instruments selection brings together equipment for these camera-based checks.
Why Use a Wöhler Inspection Camera?
These systems support internal checks where direct sight is restricted. Accessible surfaces can be reviewed for visible deposits, obstructions, joints, bends and changes in condition. A live display lets the route be followed as the head advances and shows when the view needs to be repositioned. The resulting view also supports comparisons before and after suitable cleaning or maintenance.
Where the access point and equipment are compatible, visual checks may reduce initial dismantling or exploratory opening. Excavation, cleaning, leakage testing or another method may still be required. Inspection Cameras covers other camera arrangements for different access needs.
Where supported, saved images or video provide an inspection record for comparison. They do not verify an interpretation or show anything beyond the captured view. Lighting, lens cleanliness, water, condensation, deposits, camera position and head movement affect image quality.
A Wöhler camera should therefore be matched to both the route and the required result. Clear access and suitable equipment remain as important as display or recording functions.
Where Can a Wöhler Inspection Camera Be Used?

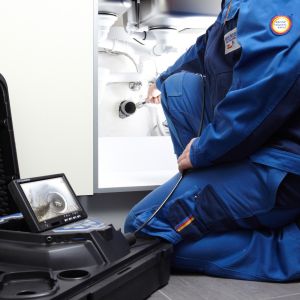

A Wöhler inspection camera may suit compatible drains, waste pipes and service connections where the camera head and push rod can move through the route. When choosing a Wöhler drain camera, compare the access-point size and internal dimensions with the expected bends, obstructions and inspection distance. Camera-head size and the push-rod or cable arrangement also affect suitability.
A Wöhler chimney camera can show reachable flue and exhaust surfaces when its head, cable or push rod suits the route. Our Drain, Pipe & Chimney Cameras equipment covers these long-reach applications.
Other uses include ventilation ducts, false ceilings, cavities, shafts and accessible sections of machinery or building services. The camera may show deposits, displaced joints, surface changes or obstructions, but it cannot clear the route or reveal conditions beyond the lens.
Visible-light inspection does not measure wall thickness, watertightness or structural strength. Thermal imaging, pressure, leakage and material-thickness testing provide different results.
How Do Camera Heads, Push Rods and Cables Affect Inspection?

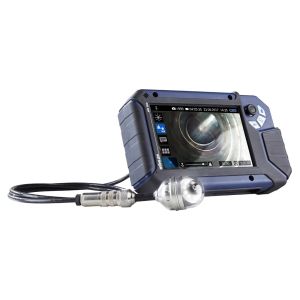

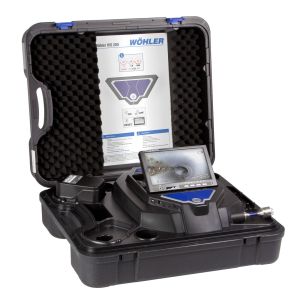

Head size determines access through the opening and route. Smaller fixed heads may suit restricted spaces, while larger or articulated heads offer more viewing control where space permits. Lighting, lens condition and image orientation affect the monitor view.

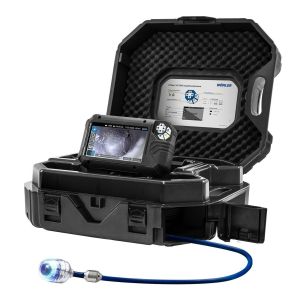

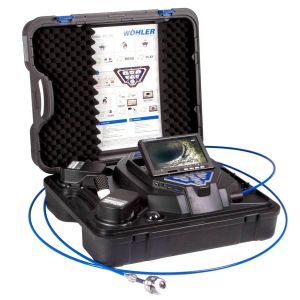

A push rod provides controlled forward movement through compatible pipes, drains and ducts. Its diameter, stiffness and length affect handling over distance and through bends. A camera cable may suit lowering or guiding a head through accessible flues, shafts or other routes. The arrangement must remain manageable without relying on excessive force around a change in direction.
Directional or pan-and-tilt movement adjusts the view around suitable internal surfaces. Fixed, articulated and interchangeable arrangements suit different openings and routes, and each function applies only where supported.

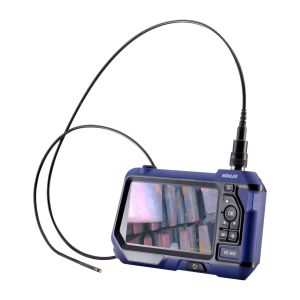

For compact, short-probe viewing through smaller openings or inside machinery, see our Endoscopes equipment. That equipment serves a separate access arrangement from long-reach push-rod and cable systems.
How Do You Choose the Right Wöhler Inspection Camera?
Start with the opening, internal dimensions, distance and bends. Compare these conditions with the head diameter and push-rod or cable construction.
Then consider head control, lighting and image orientation. Monitor arrangement, recording, file storage, battery, environmental protection, cleaning and transport also affect field use. If an inspection record is required, confirm the available still-image, video, storage and file-transfer functions rather than assuming they are standard.
Pan-and-tilt movement, distance indication, wireless display and interchangeable heads apply only where stated. A distance counter indicates the rod or cable fed through the route, not the head’s precise position.

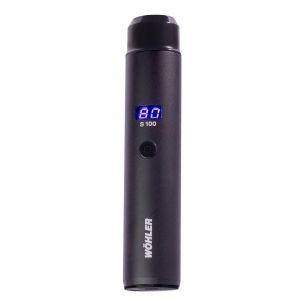

A locator receives a signal only from a compatible camera head with an active transmitter. It supports surface location but does not produce an image, create a survey map or assure exact depth. Confirm compatibility between the camera head, push rod or cable, display and locator.
Order a Wöhler Inspection Camera from Celtic Surveys
We can help you compare camera-head, push-rod, cable, display, recording and location arrangements according to your access point and inspection route. No single Wöhler inspection camera suits every application, so each required function should be checked against the intended work.
Need help choosing a Wöhler inspection camera for your work? Call 01 801 1335 or email sales@celticsurveys.ie for practical product advice before buying.
