Measuring Rods
A measuring rod spans the direct distance between two accessible surfaces or reference points. Its telescopic or sectional body extends until the end fittings contact the defined faces, allowing internal dimensions to be read across the space. This method supports room heights, opening widths, component spacing, and vehicle or load-space checks. The result depends on stable contact, suitable alignment, and clearly identified endpoints.

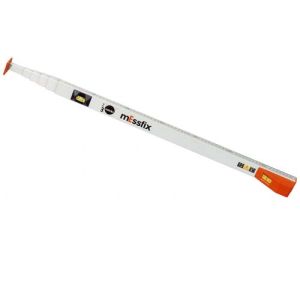

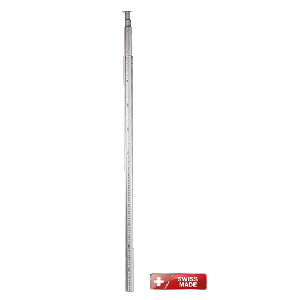

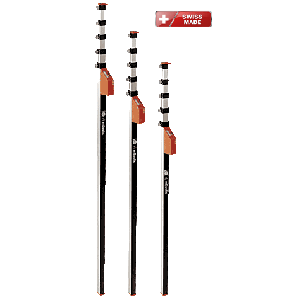

On construction, fit-out, workshop, and maintenance work, a telescopic measuring rod provides a rigid physical span where a tape may bend, sag, or be difficult to hold. It can be positioned between walls, floors, ceilings, jambs, frames, or other accessible faces within its stated range. Within our Distance Measurement / Monitoring equipment, this is a direct-contact method rather than a remote or route-based measurement. It does not measure points that the instrument ends cannot reach.
Why Use a Measuring Rod for Direct Internal Measurement?
This equipment is useful when a straight internal height or width must be taken between accessible faces. The extended sections maintain a defined line across the opening, while the reading arrangement allows the operator to obtain the span. A measuring stick can suit repeated checks across rooms, doors, windows, industrial openings, and fabricated assemblies. Depending on the design and working position, it may also reduce the need to support a long flexible tape.
Rigid construction does not make the result independent of positioning. Diagonal placement can produce a longer reading than the intended perpendicular distance, while incomplete contact can shorten the recorded span. Uneven, angled, soft, or moving surfaces may change where the end fittings sit. A reading does not independently confirm that opposite faces are level, square, parallel, or suitable for installation.
What Can a Measuring Rod Measure?
Suitable applications include wall-to-wall distance, floor-to-ceiling height, accessible depth, window and door openings, roller-shutter dimensions, and clearances between components. The same method can check internal frames, vehicle bodies, trailer spaces, storage areas, machinery gaps, and installation positions. Every dimension must fall within the stated extension range and allow both ends to contact suitable reference faces. The instrument records the occupied straight span rather than the shape of the surrounding space.

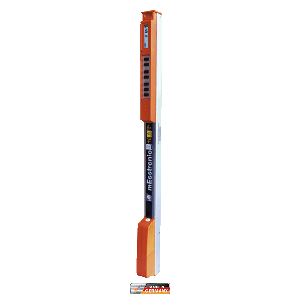

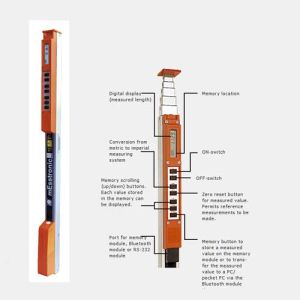

A digital measuring rod presents the measured value on an electronic display and may provide memory or data transfer where supported. Manual graduations and analogue indicators provide different reading arrangements without changing the need for correct contact and alignment. Display resolution, graduation readability, battery condition, and instrument condition may influence use or interpretation. The instrument does not directly determine curved distance, circumference, route length, area, volume, gradient, coordinates, boundaries, structural condition, safety, or compliance.
Where Are Measuring Rods Used?
Construction and interior fit-out teams use these instruments for rooms, ceiling heights, partitions, service spaces, and installation clearances. Window, door, roller-shutter, and industrial-door work may require dimensions between jambs, heads, sills, floors, or finished faces. Property maintenance and facilities teams can record recurring internal spans across accessible building areas. Each measurement should identify the surfaces and position used so that later checks refer to the same dimension.

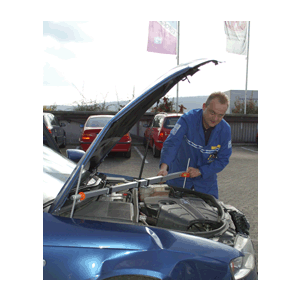

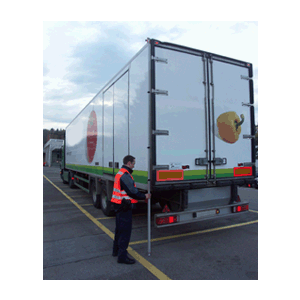

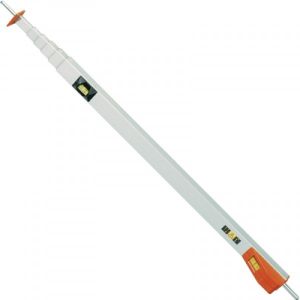

Vehicle bodywork, trailer assessment, fabrication, and workshop tasks may require internal height, width, or component spacing. A telescopic measuring stick can reach across suitable load spaces, frames, assemblies, or machinery where both contact points remain accessible. End plates, points, or other fittings may suit particular profiles where included, but their shape affects how the reference is occupied. Where a different measurement path is needed, Folding Rules suit shorter rigid checks, Marking Tapes provide a flexible line, and Laser Distance Measurers read remotely to a suitable visible target.
How to Choose a Measuring Rod for the Work

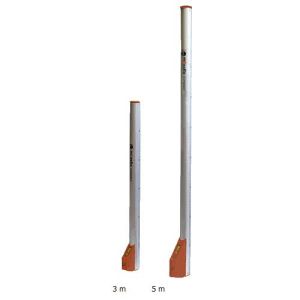

Start with the minimum and maximum dimensions, the available positioning space, and the surfaces that the instrument must contact. Section length, number of extensions, locking arrangement, and collapsed size determine how the equipment fits into the working area and travels between sites. Contact plates, points, or other end fittings should match the reference faces without assuming that one arrangement suits every opening. The expected orientation and available hand clearance also affect suitability.
Reading options may include printed graduations, an analogue indicator, or an electronic display. Units, graduation interval, resolution, display position, readability, memory, and wireless transfer vary by design, with electronic functions applying only where supported. Alignment aids may assist positioning but do not independently establish level, squareness, or parallelism. Weight, storage protection, environmental resistance, battery type, and carrying case should reflect field use and transport requirements. Loose locks, bent sections, worn fittings, dirt, movement, temperature change, impact damage, or a weak battery may affect use and readings, so no single arrangement suits every application.
Order a Measuring Rod from Celtic Surveys
Celtic Surveys supplies manual, telescopic, analogue, and digital equipment for building, fit-out, opening, vehicle, trailer, workshop, and maintenance measurements. Measuring range, section design, end fittings, reading arrangement, and transport protection should match the intended work. Our team can help compare these practical requirements against the expected dimensions, access, contact surfaces, and recording needs.
Need help choosing a measuring rod for your work? Call 01 801 1335 or email sales@celticsurveys.ie for practical product advice before buying.
