Measuring Wheels (Trundle Wheels)
A wheeled distance instrument records the length travelled along a suitable surface by counting rotations of a wheel with a known circumference. Each rotation contributes to a cumulative reading, so the result follows the physical route taken across a floor, path, road or ground surface. It is a route-length measurement, not necessarily the shortest distance between two points.
Available instruments vary by wheel diameter, mechanical or electronic counter, displayed units, handle design, stated measuring range and intended surface. They complement our Distance Measurement / Monitoring equipment for recording route lengths across suitable indoor and outdoor surfaces. Selection should reflect the route, surface condition, reading format and working environment, subject to the instrument’s stated specification. Wheel diameter is a practical suitability factor rather than an indicator of universal accuracy.
Why Use a Measuring Wheel for Route-Length Measurement?
Wheeled measurement is useful when a required route follows floors, roads, paths, tracks or accessible ground. The recognised alternative name, trundle wheel, is common in construction, landscaping, facilities management, property work and sports-ground maintenance. It can also provide route-length figures for preliminary estimating where the surface and required level of measurement are suitable. Typical requirements include checking corridor lengths, access routes, path edges, fence runs and planned groundworks before quantities or labour allowances are prepared.
The reading depends on continuous wheel contact, a clearly defined route and suitable surface conditions. Slip, bounce, loose gravel, mud, soft soil, long grass, uneven ground, kerbs, obstacles and surface joints can affect the result. Loss of surface contact interrupts the intended rotation-to-distance relationship. Changes in direction, slopes, instrument alignment, operator movement and the chosen start and end points can also affect the recorded length. A sloping route produces the distance travelled along the slope, not the equivalent horizontal plan distance.
What Can a Measuring Wheel Record?
A distance measuring wheel translates rotation into a cumulative value according to wheel circumference and counter design. A mechanical counter generally uses a geared mechanism, while an electronic counter may provide a digital display, unit selection or stored readings where supported. Some instruments count in forward and reverse directions. These functions affect workflow and display options, but an electronic counter is not automatically more accurate than a mechanical one.
The equipment does not directly establish surface area, gradient, level difference, ground elevation, coordinates, surveyed boundaries or track gauge. Curves and changes in direction become part of the cumulative route because the wheel follows them. Slopes are recorded along their surface length, without automatic conversion to horizontal distance. Nor does the equipment establish a legal boundary or replace coordinate-based survey equipment. The result remains subject to wheel contact, route definition and the stated measuring range.
Where Is Wheeled Route Measurement Used?

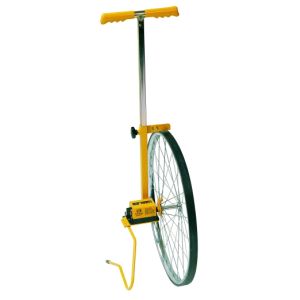

On building and construction sites, wheeled instruments can record routes across floors, paved areas, access roads and prepared ground where suitable for the surface. A road measuring wheel suits defined paved routes when its diameter and tread match the work. A land measuring wheel commonly uses a larger wheel for fields, agricultural land, sports grounds and landscaped areas, although ground condition still affects contact. Facilities and property teams may use these instruments for floor runs, access paths and maintenance routes. Specialist rail-track measurement requires equipment designed with the appropriate rail-guiding arrangement.
Different methods serve different measurement geometries. Where both points are accessible and a straight graduated line can extend between them, Measuring Tapes provide direct point-to-point measurement. For remote straight-line measurement to a suitable visible target, Laser Distance Measurers use a line that does not follow the ground route. The appropriate method depends on whether the requirement is a travelled route, a direct line or another defined distance.
How to Choose the Right Measuring Wheel

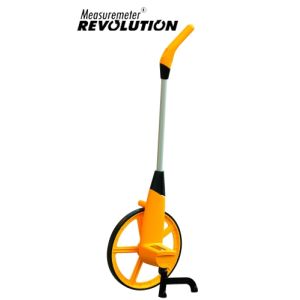

Wheel diameter and tread should suit the intended surface. Compact formats are convenient indoors and for shorter routes with limited storage space. Larger wheels generally travel more steadily across outdoor surfaces, but they do not remove the effects of loose material, deep mud, long grass or obstacles. No single wheel size suits every route. Expected surface joints, kerbs and direction changes should also be considered because they can disturb steady rolling. Wheel wear, dirt on the wheel and counter condition may influence readings and serviceability.
Counter choice should account for mechanical or electronic operation, metric or dual-unit readings, display readability, required measuring range and any forward or reverse counting needed. Where included in the specification, folding or telescopic handles can simplify transport and storage, while handle length affects working position. Kickstands, brakes or counter locks may support site use. For specialist track work, check rail-guiding compatibility. The final selection should match route length, expected obstacles, surface type, display needs and environment.
Order a Measuring Wheel from Celtic Surveys
Celtic Surveys supplies professional mechanical, electronic, road, land and specialist track measuring equipment for selected construction, property, landscaping, facilities and field applications. We can help match wheel size, counter type, handle arrangement, measuring range and surface suitability to the work, including any required display, storage or specialist guiding features.
Need help choosing a measuring wheel for your work? Call 01 801 1335 or email sales@celticsurveys.ie for practical product advice before buying.
