Prisms

Survey Prisms for Accurate Measurement Targets

Survey prisms are important because they help create a dependable reference point for total station work. When the prism is correctly positioned, the instrument can measure to that point more consistently. This supports construction layout, engineering checks, monitoring tasks and general survey work where repeatable measurements are required.

Different site tasks may need different target setups. A standard prism may suit general setting out and control work, while a mini prism can be useful where a smaller target is easier to position. In some situations, reflective target sheets or fixed targets may be more practical for monitoring or short-range work. Choosing the correct target type helps reduce avoidable measurement issues and makes fieldwork more efficient.

Choosing the Right Prism for Your Survey Work

Choosing survey prisms should start with the work being carried out. For general site setting out, a durable prism with suitable mounting options may be enough. For more detailed measurement work, the target size, prism constant, mounting method and visibility may need closer attention.

It is also important to consider how the prism will be used in the field. Some users need a prism mounted on a pole for mobile setting out work. Others may need a prism carrier or tribrach setup for control points and repeatable station work. Site conditions also matter. Exposed areas, uneven ground and repeated movement across the site can all affect how stable and practical the setup feels during daily use. We can help you match the correct prism to your total station, site conditions and measurement requirements.

Mini Prisms and Compact Target Setups

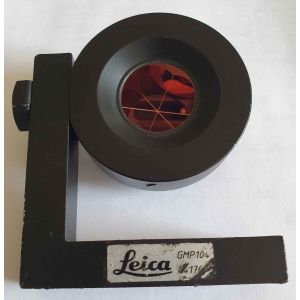

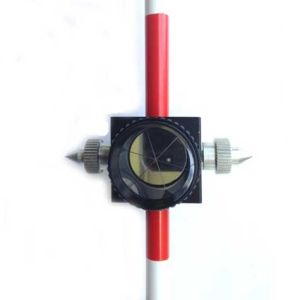

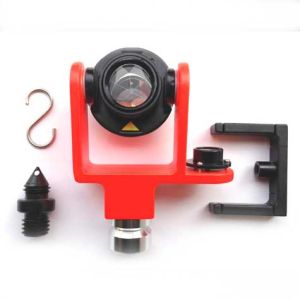

A mini prism is useful when a smaller, lighter target is preferred. These compact targets can be easier to position in tighter areas, around structures or in situations where a full-size prism is not necessary. A mini prism for total station work can also be helpful for shorter-range checks, detail work and tasks where portability is important.

Mini prisms are often used by surveyors and site teams who need practical target options for regular fieldwork. They can be mounted with suitable poles, adaptors or carriers depending on the setup required. Although smaller targets are convenient, they still need to be positioned carefully. The quality of the reading depends on the total station, the prism, the mounting equipment and the care taken during setup.

Prisms for Setting Out, Survey Control and Monitoring

Survey prisms support several common site measurement tasks. In a construction setting, they help teams mark positions, check layout points and confirm that site work follows the required control. In survey control, they provide defined targets that can be measured repeatedly from known instrument positions.

They can also support monitoring work where repeated readings are needed over time. Survey monitoring prisms may be used where movement, alignment or reference points need to be checked at different stages of a project. The target must remain visible, stable and correctly positioned for the results to be useful. For fixed or short-range target points, Retro / Reflective Sheets may also be suitable, depending on the instrument, distance and site requirement.

Prism Poles, Bipods and Mounting Accessories

A prism is only effective when it is positioned correctly. For mobile site work, many users mount survey prisms on Prism Poles so the target can be held at a known height and moved between points. A clearly marked pole helps the surveyor maintain consistent target height during setting out, control checks and field measurement work.

Where steadier positioning is needed, Surveying Bipods can help support the pole and reduce movement during repeated readings. This is useful on busy sites, longer observations, or work where the target must stay upright while measurements are taken. For more controlled setups, Tribrachs & Prism Carriers can help centre and mount prisms accurately over survey points. These accessories help improve repeatability and reduce small setup errors.

Matching Survey Prisms with Total Stations

Survey prisms should be matched with the total station workflow. Some tasks require prism-based measurement for controlled accuracy or longer working distances. Other jobs may use reflectorless measurement for certain points, while still relying on prisms for control, setting out or repeat checks.

If you are choosing a new instrument as well as targets, our Total Stations / Theodolites range can help you compare suitable survey instruments. For users already working with a total station, it is worth checking compatibility before choosing a prism, pole, adaptor or carrier. You can also browse our Total Stations range if you are building a new measurement setup from the instrument through to the accessories. Matching the equipment correctly helps the full setup work more reliably on site.

Choosing Survey Prisms for Daily Field Use

Daily site work can be hard on survey equipment, so durability and ease of use matter. Survey prisms should be practical to handle, easy to mount and suitable for the working environment. The right choice may depend on whether the prism will be used for general construction setting out, control work, engineering checks, monitoring or detailed measurement.

Consider the working range, target size, mounting accessories and whether the prism will be moved often throughout the day. If the equipment will be used by different members of a site team, simple setup and clear positioning can also help reduce mistakes. We recommend choosing prisms alongside the correct pole, tripod, tribrach or carrier so the full setup supports accurate fieldwork.

Order Survey Prisms from Celtic Surveys

We supply survey prisms, mini prisms, target plates and related accessories for total station measurement, construction setting out, survey control, monitoring and site measurement. Our range supports professional field setups for surveyors, engineers, contractors and site teams who need reliable targets for accurate measurement work.

Need help choosing the right prism for your total station or survey setup? Contact us for practical product advice before buying. Call 01 801 1335 or email sales@celticsurveys.ie to discuss the best option for your work.
