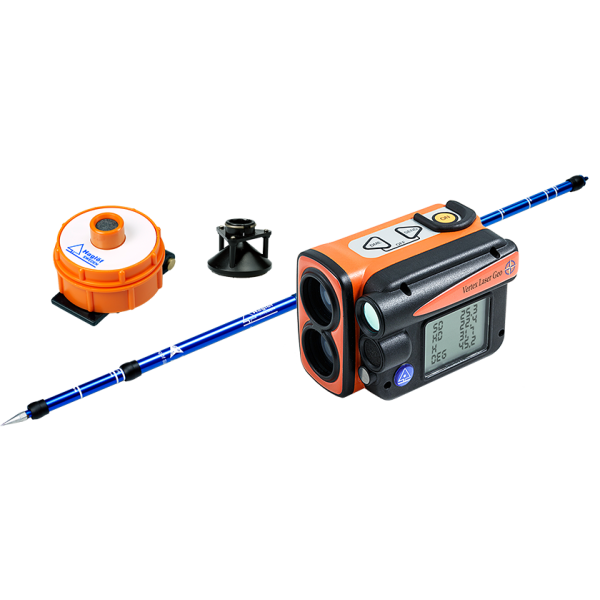

Haglof - Vertex Laser Geo 2, Built in GPS & Compass Rangefinder, Hypsometer, Bluetooth, Compass & GPS
€3,314.85
€2,695.00
The Vertex Laser Geo 2 with outstanding capabilities.
Why Vertex Laser Geo 2:
- High Precision
- User friendly
- Rugged, All-in-One instrument
- Combined Laser and Ultrasound technology
- Different software available
Customized Software on request Whether you’re in industrial settings or exploring the great outdoors, Vertex Laser Geo 2’s cutting-edge capabilities and programmability make it the perfect tool for any task. Elevate your measurement accuracy and efficiency with Vertex Laser Geo 2 today!
Features & Benefits:

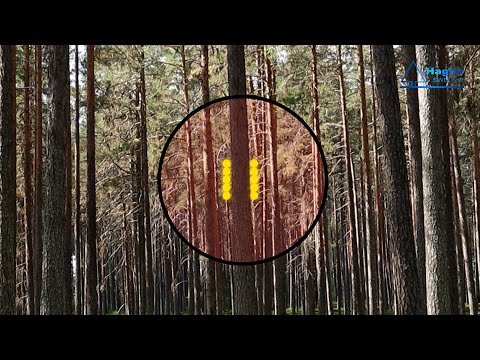

The Vertex Laser Geo 2 stands out with its unparalleled ability to measure heights and distances, as well as map, process, and store forest and field data in innovative ways. Its groundbreaking feature of measuring diameter at various distances and heights is particularly noteworthy. Whether you’re taking long-range measurements with high-precision lasers or dealing with shorter distances using Ultrasound in dense undergrowth, the Vertex Laser Geo 2 handles it all seamlessly. The integrated tilt and compass sensors ensure accurate 3D measurements. Results are conveniently shown on an internal heads-up display and an external graphic display.
Programmable:
The Vertex Laser Geo 2 instrument features an advanced platform that allows you to download and install new apps tailored to your requirements. Additionally, we can create a custom app based on your specific preferences. Upon delivery, the instrument includes a pre-installed Standard App, which offers the same functions as its predecessors VL Geo, along with enhancements and new features like Remote Diameter.
Availability:
In stock
SKU
Vertex Laser Geo
Sample plots
When using ultrasound and the center plot stick with the 360˚ adapter in the center of a sample plot, you can easily measure the distance and check if the trees on the plot are within the correct radius to be measured.
Sample points
When using a prism or similar, there is the BAF function “Basale Area Function” to control the minimum (DBH) that the tree must have to be counted at sample points.
BAF factors: 0.5, 1 to 9 (m2/ha) or 5, 10, 15..to 50 (ft2/acre)
Vertex Laser Geo can be used in dense vegetation and undergrowth when usig ultrasound
Height & Canopy
Heights
3-point, 2-point or 1-point or direct measuring – choose preferred method to work with in the easy-to-follow menu system.
The 3D Vector function allows you to measure remote targets such as canopy width.
3D Map Area
Areal measuring
Use built in GPS to walk and log an area.
Or stand in the middle of the area and use the built in GPS, Compass, Laser and measure the points on the border of the area.
See results directly in Google Earth or other similar geographic applications.
Line Clear
Hazard trees
Line Clearance function.
- Measure on the wire
- Measure the tree height
- The unit calculates if the tree will fall on the wire or not.
- The unit calculates and present how much the tree will hit the the line or how much will go under the line.
3D Map Trail
Measure and plan driveways in forests.
Measure out where a cable car for timber or ski resorts should be pulled.
See positions on poles, height-separated for the entire distance.
See results directly in Google Earth or other similar geographic applications.
Features
The VERTEX LASER GEO and LASER GEO with unique capabilities will allow you to measure, map, process and store forest and field data in a way you didn’t think was possible! Long range measurement with high precision laser and integrated tilt- and compass sensors for accurate 3D measurements. Results are presented in an integrated heads-up display and external, graphic display.
Tree heights
3-point, 2-point or 1-point or direct measuring – choose preferred method to work with in the easy-to-follow menu system. A nonmagnification dot sight helps you to identify individual targets such as tree tops and power lines.
Map Area
Use built in GPS to walk and log an area.
Or stand in the middle of the area and use the built in GPS, Compass, Laser and measure the points on the border of the area.
See results directly in Google Earth or other similar geographic applications.
MAP Wood chip or Gravel piles
MAP Wood chip piles
Line Clearance
Hazard trees
Line Clearance function.
- Measure on the wire
- Measure the tree height
- The unit calculates if the tree will fall on the wire or not.
- The unit calculates and present how much the tree will hit the the line or how much will go under the li
GPS and Mapping
he built-in GPS receiver allows you to tag data with coordinates with the push of a button. Data is stored on a built-in SSD memory and is available for further processing via a standard USB connection to any PC or Apple computer. Files can be opened directly in your favorite GIS or spreadsheet application. Complex operations such as area measurement, 3D target mapping, and trail mapping have builtin capabilities.The 3D vector function allows you to measure remote targets such as canopy width. The instrument can also connect to an external Bluetooth GPS and use its coordinates for better accuracy.
- The receiver is a 33-channel high sensitivity receiver.
- Supports: GPS, Glonass, Galileo, QZSS.
- Built-in real tme correction w SBAS (EGNOS, WAAS, MSAS, GAGAN) Accuracy down to 2.5m/8.19ft in open terrain.
- Satellite position prediction for up to 3 days. Host Based multi-global navigation satellite system GPS(USA)/GLONASS(Russia)/Galileo(EU)/QZSS(JAPAN) SBAS Satellite-based augmentation systems: WAAS(US) EGNOS(EU) GAGAN (India) MSAS(Japan).
- Built-in self-generated orbit prediction (Faster TTFF up to 3 days), built-in jamming removing.
- Accuracy: Automatic position 2.5m CEP (circular error probable) (50% 24 hr static, -130dBm. Speed 0.1m/s (50%@30m/s.
3D Vector
The 3D Vector function allows you to measure remote targets such horizontal distances and angles between two points far ahead in the terrain such as canopy width or width of a river.
MAP Trail
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Azimuth
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Features
- GPS
- Compass
- Distance up to 700 meters
- Data storage
- USB for file transfer and charging
- CSV and Google Earth KML files
- Software upgradable
- Bluetooth and IR
- Heads up display and Graphic main display
- Built in Lion battery
- IP67
- Specification
-
Size 93x63x72mm/3.7×2.5×2.8” Weight 243 g/8.6oz. Battery
and consumption- Rechargeable Li-Ion 3.7V, built-in, approx. 2000 measurements. Charging time max 3.5h.
- USB mini B interface wall charger 110/220AC/5VDC; car charger adapter 12VDC. Cable Usb mini B Male/Usb Type A Male, 0.5m.
- Consumption max 0.9W.
Communication IR, Bluetooth® BLE 4.0 class 2, Spp (serial profile), pin-code 1234, USB 2.0/SSD Disk. Temperature -20° to +45° C/ -4°F-113°F. ULTRASOUND
(Vertex Laser Geo)- Distance: 30 m/98 ft. With 360° adapter: 20 m/60 ft.
- Accuracy distance: 1% or better typical. Resolution distance: 0.01m/0.1ft.
Onley Vertex Laser Geo.
Height 0-999 m/ft. Resolution height: 0.1 m/ft. Angle -90° – 90°. Unit: Degrees 360⁰, Grads 400⁰ and %. Resolution: 0.1⁰. Accuracy: 0.1⁰ typical. LASER - Distance: 46cm/1.5ft – 700m/2000ft depending on target. Accuracy: 4cm/0.1ft typical.
- Resolution: 0.1m/ft (0.01m/0.1ft in DME-mode).
Areal - 0<area<5000m2 or 0.5ha<area<10000ha
- 0<area<20000f2 or 0.5acre<area<10000acre
GPS 33-channel high sensitivity receiver. Supports GPS, Glonass, Galileo, QZSS. Built-in real tme correction w SBAS (EGNOS, WAAS, MSAS, GAGAN)
Accuracy down to 2.5m/8.19ft in open terrain. Satellite position prediction for up to 3 days.
Host Based multi-global navigation satellite system GPS(USA)/GLONASS(Russia)/Galileo(EU)/QZSS(JAPAN) SBAS Satellite-based augmentation systems: WAAS(US) EGNOS(EU) GAGAN (India) MSAS(Japan). Built-in self-generated orbit prediction (Faster TTFF up to 3 days), built-in jamming removing. Accuracy: Automatic position 2.5m CEP (circular error probable) (50% 24 hr static, -130dBm.
Speed 0.1m/s (50%@30m/s.
Compass Azimuth compass 0-360˚, resolution 0,1˚, accuracy <1.5 RSME˚. Classification MIL-STD-810E. Housing frame material glass filled poly carbonate, IP67, NEMA6, Laser class 1, 7mm (FDA, CFR21) Class 1m (IEC 60825-1:2001). Sight Yellow dot aim 1 x magnification. Display External Graphic LCD 100x60pixles. Internal Heads-up display. Dataformat Nmea or Ascii. IR, Bluetooth. File Format CSV and KML (Google Earth). Memory 2000 datasets, non-volatile. Other information Adapter and monopod staff, 4-parts (33-140cm)
Aluminum transport/storing case. See user manual for
more details.
3D Pile
Expand the possibilities of your Laser Geo or Vertex Laser Geo with the 3D Pile application.
Specially adapted for Log and Stockpile inventoryanced settings.
Use the 3D pile application in your Laser Geo or Vertex Laser Geo to measure the volume of any irregular stockpile or log piles.
This complete system allows one person to perform the entire job without other instruments
Features
- Inventory and volume estimation of log piles
- Inventory and volume estimation of irregular piles of different materials.
- One person can perform the entire process
- Obtain field data with high accuracy and precision
- Store data directly in the instrument
- Avoid walking and climbing in hazardous areas
Log Pile Volume
The Log pile can be divided into several sections during measurement. The sum of the sections is then the total length of the pile. Measure and record pile width, range and wood volume factor for each section. The volume is calculated by section number, number of heights, calculated average height, and volume for each section. The result includes the calculated average width of each section, the calculated average height of all measuring points, and the default wood volume factor for each section.
Woodchip or gravel piles
The 3D PILE software is useful for measuring different types of piles and rollers. Measure the pile from different sides to create a three-dimensional image of the object. The instrument saves heights and coordinates for all measurement points. Data is stored in (csv) and (kml) formats and can be opened directly in Google Earth! The instrument can also be used to calculate 2D areas (area), such as clearcuts, industrial sites or the inside of a building.
Do you already own a instrument?
If you already have a Laser Geo or Vertex Laser Geo, you can purchase this firmware application 3D Pile and update your device and start your work!
