Oven Temperature Profile
An oven temperature profiler records the thermal history of a coated product during a cure cycle. Compatible thermocouples measure oven air and product surface temperatures while the logger stores changes over time. The oven setpoint is the controller’s target, whereas product temperature reflects the component itself. A component’s thermal mass influences its heating rate, so separate areas may reach the required temperature at different times.
Within our Coatings Inspection equipment, oven profiling supports assessment of the product’s thermal cycle. A profile is specific to its probes, locations, settings, and production run. Oven position, product design and load arrangement can change the result, making repeat checks relevant after changes.
Why Use an Oven Temperature Profiler?
Reading the oven controller or air temperature alone does not establish the product’s cycle. Component thickness, geometry, material, thermal mass, load density, airflow, oven zones, conveyor speed, and product placement influence heating and cooling. Profiling records temperature against time at selected locations, showing when each monitored point warms, remains at temperature and cools.
Insufficient or excessive time at the specified product temperature can affect curing. A peak temperature alone is insufficient because the approved schedule also defines the required duration. Compare the profile with the coating manufacturer’s cure schedule, probe plan and acceptance criteria. Pass-or-fail results are meaningful only when correct cure parameters are entered, and probes represent the required locations.
What Does an Oven Data Logger Measure?
Thermocouples convert temperature into electrical signals recorded at selected points and intervals. Air probes respond to the oven atmosphere, while attached surface probes track the coated product. An oven data logger produces a separate temperature-over-time trace for each active channel, making differences between locations visible.
An oven temperature data logger may report maximum temperature, cure index, or pass-or-fail status where supported. Compatible software may calculate time at temperature or a cure value from the recorded profile and entered coating parameters. These are derived results, not direct measurements of chemical crosslinking, adhesion, hardness, gloss or coating thickness.

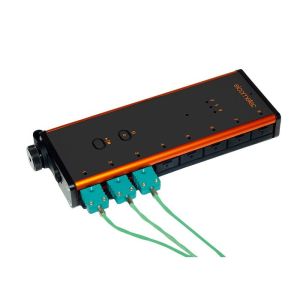

The Elcometer 215 accepts up to eight air or surface thermocouples, records at selectable intervals, stores multiple runs and transfers data by USB or Bluetooth. When positioned outside a batch oven, it also supports live Bluetooth cure-status monitoring. Bluetooth range depends on obstructions, the receiving device and the installation, so communication should be confirmed for the intended arrangement.
Where Is Oven Temperature Profiling Used?
Profiling suits compatible industrial powder-coating batch and conveyor ovens. Applications include oven setup, line-speed assessment, production changeovers, post-maintenance checks, comparison of differently shaped or loaded products, assessment of inconsistent cure conditions and documented quality checks.
A stated powder coating oven temperature does not by itself confirm the product’s thermal cycle. The applicable powder coating curing temperature and exposure time come from the approved coating manufacturer’s schedule, not a general value from another coating, component, or process. Oven air, controller setpoint, and product surface remain distinct measurements.
Wet Film & Powder Thickness relates to separate checks on uncured coating or applied powder, while Dry Film Thickness is measured after cure. A temperature profile replaces neither check. Elcomaster software supports setup, data transfer, graphing and reporting, but its calculations rely on correct coating data, logger settings, channel identification and probe placement.
How to Choose an Oven Temperature Profiling System
Begin with the oven type, cure schedule, expected temperature range and measurement locations. The batch or conveyor arrangement affects cable routing, run duration and barrier use. Match channel count to the probe plan, then choose air and surface thermocouples with clamp or magnetic attachments suited to material, geometry and thermal mass. Check cable length and temperature rating, measurement range, resolution, stated accuracy, logging interval, memory, multiple-run needs, start and stop triggers and full-cycle duration.
Confirm the thermal barrier’s temperature-and-time limits, oven opening and available clearance. Match USB, Bluetooth, software and reporting functions to the workflow, together with suitable calibration and verification arrangements. Magnetic probes require a compatible ferrous surface, while clamp probes suit other geometries where secure contact is possible. Probe movement, poor contact, unsuitable placement, damaged cables, incorrect channel identification or an inappropriate sampling interval can distort the profile.
The barrier protects the logger only within its stated limits, and every component must suit the run. The G215-DL system listed by Celtic Surveys includes a thermal barrier. Thermocouples should match the required air and surface locations. Confirm package contents and accessories before ordering. A calibration certificate is supplied as standard, with later checks following the applicable quality arrangements.
Order an Oven Temperature Profiler from Celtic Surveys
We supply the Elcometer 215 Oven Temperature Profiling System for industrial powder-coating batch and conveyor ovens. The Elcometer 215 oven data logger supports up to eight channels, selectable intervals, stored runs, USB or Bluetooth transfer, and ElcoMaster cure-value assessment and reporting. Selection should reflect the cure schedule, oven arrangement, product geometry, probe plan, operating temperature, run duration, barrier limits, data requirements, and accessories.
