Surface Condition
Surface condition inspection equipment assesses visible or measurable features on welds, pipework and prepared steel. Depending on the method, the result may be a weld dimension, pit-depth reading, comparison with a physical weld sample or visual match against reference photographs. These results are not interchangeable, so the specified feature determines the equipment.
Within our Coatings Inspection equipment, Elcometer gauges, comparators and visual standards support checks before lining, coating or maintenance work. They describe a selected position rather than determining the condition of an entire weld, pipe or steel surface from one observation.
Why Is Surface Condition Assessment Important?
Visual examination identifies obvious variation, but appearance alone does not supply every weld dimension. Preparation angle, misalignment, fillet dimensions, excess weld metal and undercut require an appropriate reference and scale. Visible corrosion likewise gives no dependable pit-depth value without mechanical contact.
Recorded readings and comparisons create a consistent basis for checking nominated positions against a drawing, specification, nominal dimension or visual grade. They also support comparison before lining or coating conceals the feature. This consistency matters when several locations or preparation stages are reviewed under the same project requirement.
Each result remains local to the assessed point or area. Weld geometry varies along a joint, pitting varies across pipework and prepared-steel appearance changes with rust grade or preparation method. Test distribution must therefore reflect the project procedure. Acceptance depends on stated criteria rather than a measurement alone.
What Are the Main Surface Condition Checks?

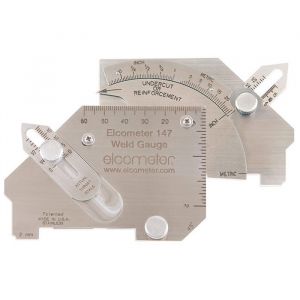

Dimensional weld assessment produces numerical values. The Elcometer 147 weld gauge measures in metric and imperial units, including preparation angle, high-low misalignment, fillet throat and leg dimensions, excess weld metal, undercut, pitting depth and general linear dimensions within its scales. Correct contact and alignment remain necessary at the selected position.

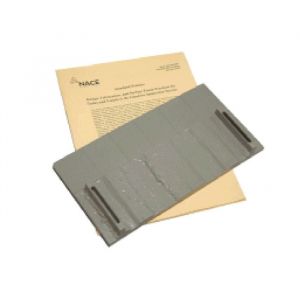

Weld-finish assessment is comparative rather than dimensional. The Elcometer 999 surface weld comparator contains 14 moulded examples of weld conditions for comparison by sight and touch. It supports finish assessment where a lining or project requirement identifies the relevant condition. It does not measure weld size or internal quality.

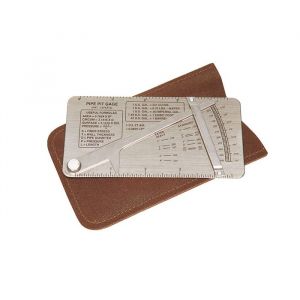

The Elcometer 119 pipe pit gauge indicates accessible corrosion-pit depth against the pipe reference surface and nominal wall thickness. It sits across the pipe while its stylus reaches the pit base. Its range is 0 to 500 mils, with imperial graduations only. Stable contact and an unobstructed pit are necessary for a representative reading.

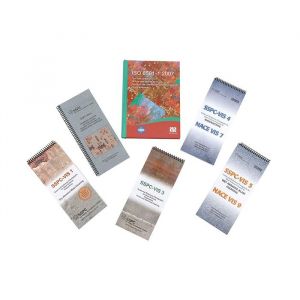

Elcometer 128 pictorial surface standards compare steel with reference photographs before or after specified preparation. The selected standard may represent original rust grades or results from blasting, hand tools, power tools or another stated method. The photographs classify appearance rather than measuring roughness, dust, soluble salts or coating thickness.
Where Is Surface Condition Assessment Used?
Weld gauges and comparators apply to steelwork, tanks, vessels, pipe assemblies and other welded structures where geometry or finish is specified. Comparative references are relevant before lining tanks and vessels, where irregular features affect preparation requirements. The specification determines acceptance.
Pipe pit gauges suit accessible external pits where a stylus can reach the base and the gauge can sit securely. Material Thickness instruments address remaining wall thickness through ultrasonic measurement. Pit depth and wall thickness describe different aspects of pipe condition and are not the same result.
Pictorial comparison applies where the specification names a recognised visual grade. It supports the visual part of Surface Cleanliness assessment. When peak-to-valley height or another texture value is required, Surface Profile equipment supplies the separate measurement. Other specified checks still determine coating readiness.
What Affects Surface Condition Assessment Results?
Mechanical readings depend on seating, contact, zero condition and alignment. Debris, coating residue, irregular edges, limited access or an unreachable pit base may distort the result. A gauge that rocks or rests on damaged material loses its intended reference.
Visual comparison depends on lighting, viewing angle, shadows, surface colour and contamination. Reference photographs and comparator samples must remain clean and undamaged. The selected document, issue and grade must match the project because similar standards may use different methods or classifications.
Readable graduations, suitable units and required pre-use verification affect the records. Mechanical gauges do not share one universal calibration procedure, so the equipment instructions and project method remain controlling. Position references, units, date and results should be retained where required.
Order Surface Condition Inspection Equipment from Celtic Surveys
Celtic Surveys supplies the Elcometer 147 Weld Gauge, Elcometer 999 Surface Weld Comparator, Elcometer 119 Pipe Pit Gauge and Elcometer 128 Pictorial Surface Standards. Selection depends on the required dimensional reading, physical comparison, pit-depth measurement or photographic classification.
Confirm the required characteristic, units, range, surface geometry, access and nominated visual standard before ordering. Our team can clarify current specifications, package contents and the intended role of each product.
