Holiday Detectors
A holiday detector applies high voltage through a probe electrode moved across a suitable non-conductive coating over a conductive substrate. Where a discontinuity or electrically weak area permits breakdown towards the substrate, current flows through the return circuit and the instrument signals the location. The alarm identifies a response at that point, but it does not establish the flaw's dimensions, depth, or cause.
Within our Coatings Inspection equipment, this method assesses protective-coating continuity. The result depends on the coating system, dry-film thickness, substrate conductivity, test standard, voltage, sensitivity, return connection, surface condition, and probe arrangement. Only surfaces contacted by the electrode are tested; inaccessible areas remain outside the result.
Why Use a Holiday Detector?
Pinholes, holidays, and other discontinuities may be too small to identify reliably by sight. A holiday is a discontinuity in the coating barrier; the electrical method may also respond to weak remaining coating. Where the barrier is absent, interrupted or weaker than expected, sufficient voltage may establish a path towards the conductive substrate.
A holiday tester supports systematic coverage and location marking, but results require interpretation against the project specification, coating system, test method, test area and acceptance criteria. An alarm does not necessarily prove that an open hole reaches the substrate because high-voltage testing may also respond to weak remaining coating or a void within it. The instrument neither sets the permitted number of discontinuities nor approves the coating independently.
The Elcometer 266 uses high-voltage continuous DC. Low-voltage wet-sponge and pulsed DC methods use different arrangements, so establish the specified method before selection.
What Does a Holiday Detector Detect?
During continuous DC testing, the electrode passes across the coating while a signal-return lead connects the instrument to the conductive substrate. At a responsive discontinuity or weak area, electrical breakdown permits current to flow through the circuit, activating the audible and visual alarms. The method may locate pinholes, holidays and void-related weak points, but it does not reliably classify the flaw type.
Test voltage depends on coating thickness, dielectric properties, the applicable standard and the approved procedure. Insufficient voltage may miss a discontinuity, while excessive voltage may break down or damage sound coating. Dry-film thickness must therefore be established separately using suitable Coating Thickness NDT equipment or other specified information. A holiday detector does not measure thickness, pore diameter, flaw depth, adhesion, corrosion severity or remaining service life.
Where Is Holiday Testing Used?
Continuous DC testing suits specified work on pipelines, tank floors and accessible coated metal structures where the coating is non-conductive, the substrate is conductive and a sound return connection is possible. For a pipeline holiday detector, pipe diameter, surface area, edges, weld geometry, access and required coverage influence the electrode arrangement. Band brushes suit complex or confined areas, while wire brushes, conductive-rubber electrodes and rolling springs address other surface widths and pipe geometries where compatible.
Probe contact and coverage remain important around edges, welds and changes in shape. Dirt, dampness, contamination and partially conductive coatings may alter electrical behaviour or sensitivity requirements. Surface Cleanliness checks address separate preparation and contamination requirements rather than coating continuity.
High-voltage testing requires competent operation, the manufacturer's instructions, a risk assessment and controlled site arrangements. The return lead, probe, cables and surface must suit the procedure. Safety switches and alarms do not remove the electrical hazard.
How to Choose a Holiday Detector
Begin with the required electrical method, coating system, dry-film thickness, substrate conductivity and applicable standard. Assess voltage range and adjustment, output accuracy, current sensitivity, signal-return arrangement, surface geometry, test area, and compatible electrode. The selected handle must cover the specified test voltage; the highest available setting is not automatically appropriate. Choose a DC holiday detector only where continuous DC is the required method. Holiday spark tester is a common name for high-voltage equipment, but the term alone does not define the required test arrangement.
Power supply, display visibility, audible and visual alarms, weight, operating conditions, supplied items, optional accessories and calibration documentation also affect selection. Records should identify the instrument, method, voltage, test area, coating information and marked locations in accordance with the applicable procedure. Adhesion Testers assess coating bond strength separately.

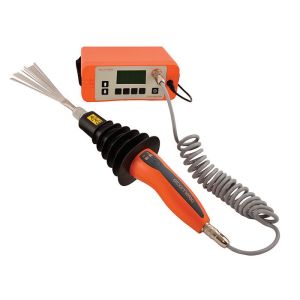

The Elcometer 266 includes a voltage calculator based on the selected standard and entered coating thickness, adjustable voltage and sensitivity, an internal voltmeter or Jeep tester, alarms and a rechargeable battery. Interchangeable handles cover maximum ranges of 5kV, 15kV and 30kV, with a separate DC30S continuous-voltage option. The base package includes a band brush but excludes the high-voltage handle. A calibration certificate is optional, so confirm the required configuration before ordering.
Order a Holiday Detector from Celtic Surveys
We supply the Elcometer 266 holiday detector for selected high-voltage continuous DC coating-porosity checks on pipelines and other suitable protective-coating applications. Final selection should reflect the required standard, coating thickness, electrical properties, voltage range, substrate, geometry, electrode arrangement, access, certification and site safety requirements.
Need help choosing a holiday detector for your work? Call 01 801 1335 or email sales@celticsurveys.ie for practical product advice before buying.
