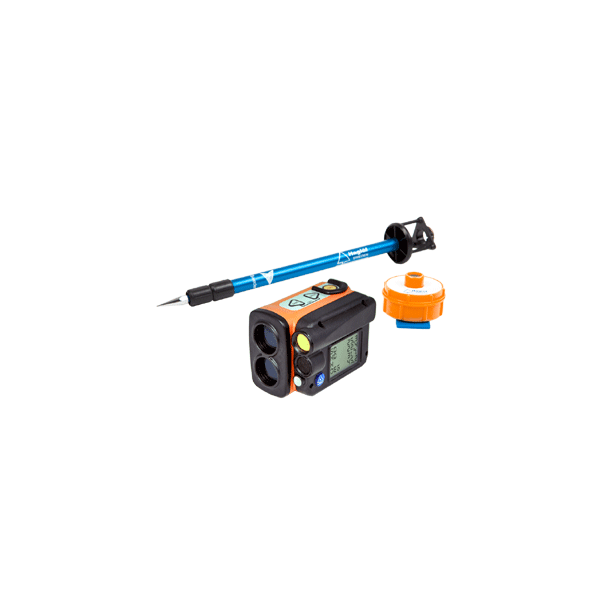

Haglof - Vertex Laser VL5 with Bluetooth, T3 transponder, adapter, monopod staff

€2,865.90 €2,330.00

The brand new VL5 Vertex Laser instrument is a technical innovation designed for all field measuring situations, weathers and terrains. This rugged and reliable device with the well known unique combination of ultrasound and laser technology, works for any height, distance and angle measuring you need to know.

Availability: In stock

SKU

15‐103‐1020

Details

Vertex Laser - VL5

Leading instrument system-combo for your most efficient height, distance and inclination measuring. Great accuracy in all surroundings!

Vertex Laser - VL 5

Extended range measurement and reach with ultrasound and laser combination
Work with situation based measurement method with great accuracy and ease
Safe and secure operation with extra rugged instrument case in bright orange color
Efficiency increase with internal storing and data processing capacity
In-built functions for BAF, hazard trees, tree limit and delta height
Bluetooth® and IR communication to external devices

Distance

The VL5 Vertex Laser allows you to select measurement method depending on the actual location and situation.

Laser

Ultrasound

Extended range laser technology- ideal for long distances up to 700 meters/yards. Above image shows instrument mounted on camera-type staff for stability in long-distance aiming. Distance Measuring

For shorter ranges, and in particular for circular plot inventory and when working in dense terrain, use the proven and reliable Vertex ultrasound method. Sample Plots with Ultrasound

Heights

Angles

Height measuring method can be selected depending on your current location, surrounding and situation. Tree Heights

The VL5 presents angle in degrees, grads and percentage in terrain slopes. Angle and Inclination The cameratype monopod with foot-bracket is an accessory for the Postex Laser, the VL5 and the L5 instruments.

Height measuring methods

One-shot	Two-points with laser
Three-points	Two-points with reference point
Two-points with ultrasound

Plot radius

Always work with the correct plot radius in your sample plots. The VL5 ultrasound distance measurement method is the best choice for this. Sample Plots with Ultrasound

SPECIAL FEATURES

BAF - Basal area factors

Poor sighting in prism cruisings can prevent a correct diameter measuring in the plot. With the VL5 built-in BAF function, the minimum tree diameter for trees to be included in the plot is featured. Basal Area (BAF)

Power line measuring work

The VL5 Vertex Laser is a great choice to perform utility work and controls along power lines. Line sags, borderline trees, heights, angles and distance can be measured and controlled with built-in functions in the VL5. Controlling Hazard Trees

Hazard Trees Function

To identify and measure hazard trees along power lines, building sites, houses, roads and railways, use the built-in tree limit function in the VL5.

Delta Height Function

The VL5 includes a function called Delta Height, designed to measure line sag.

Filter function

A built-in laser filter allows for flexible measuring. You can choose to measure the closest object, the farthest object or the object that emits the strongest reflection.

Internal storing and data processing capacity

With storing capacity of 2000 data sets, the VL5 is great for plot survey work. Calculate the mean height for a stand and have the results presented to you directly.

Communication

The VL5 communicates by IR and Bluetooth with external devices. Measured values can be transferred to Haglöf Sweden's computer caliper the DP II or Digitech Professional, or to other handheld units with dataformat NMEA or ASCII.

Custom programming

Haglöf Sweden professional instrument VL5 and L5 have data processing capacity. Ask us for details on customized instrument models!

Physical
Dimensions (LxWxH)	93 x 63 x 72mm / 3.7 x 2.5 x 2.8”
Weight	243g / 9oz
Housing and frame material	Glass filled polycarbonate
Shock/Vibration	MIL-STD-810E
Moisture	IP67, NEMA 6
Monopod/tripod mount	1/4” female thread
Operating temperature	Temperature range -20° to +45°C / -4F to 113F
Power
Power consumption	Max 0.9W
Battery duration	Approx. 9000 measurements
Battery type	Chargeable Li-Ion 3.7V
Charging time	Max 3.5h
Charger interface	USB mini B
Charger	Wall charger 110/220AC-5VDC, USB mini B interface
Car charger	Car Cigarette Lighter Adapter 12VDC , USB mini B interface
Cable	USB mini B Male/USB Type A Male, 0.5m
User interface
Buttons	3 multi functional buttons
Buzzer	Yes
Display	Graphic LCD 100x60pixel
Bluetooth	Class 2, Spp (serial profile), pin code 12345
Ir	Haglöf standard format
Data format	Nmea or Ascii
Sight	Led crosshairs 1x magnification
Memory
Capacity	2000 set of data
Memory type	Non volatile
Height
Range	0-999.9m/ft
Resolution	0.1m/ft
Vertical Angle
Units	Degrees 360⁰, Grads 400⁰ and %
Angle range	-55⁰ to +85⁰
Resolution	0.1⁰
Accuracy	0.1⁰
Laser
Min range	1.5ft / 46cm
Max range	2000ft / 700m (depending on target)
Resolution	0.1ft / 0.1m
Accuracy	0.1ft / 4cm
Target modes	First, Last, Strongest
Wavelength	905nm
Divergence	3mrad (1ft beam diameter @ 328ft (30cm @ 100m)
Eye safety classification	Class 1, 7mm (FDA, CFR21) Class 1m (IEC 60825-1:2001)
Ultrasound
Distance (max) to transponder T3	Approx. 30m / 100ft
Distance (max) to T3 with 360° adapter	Approx. 20m / 60ft
Resolution	0.01m / 0.1ft
Accuracy	1% or better when calibrated
Transponder T3
Dimensions	Diameter 70mm / 2.8”
Weight	85g / 5oz (battery included)
Battery	1 x 1,5V AA Alkaline
Power consumption	9mW
Other
Adapter/Spreader	Plastic, weight app. 30g / 1oz
Monopod/plot staff	4-parts, 33-140cm, weight app. 270g / 9.5oz, aluminium/plastic
Case	Aluminum safety case and soft carrying case for measuring instrument
