Elcometer 510 Model S Automatic Pull-Off Adhesion Gauge - 50mm Kit c/w Calibration Certificate

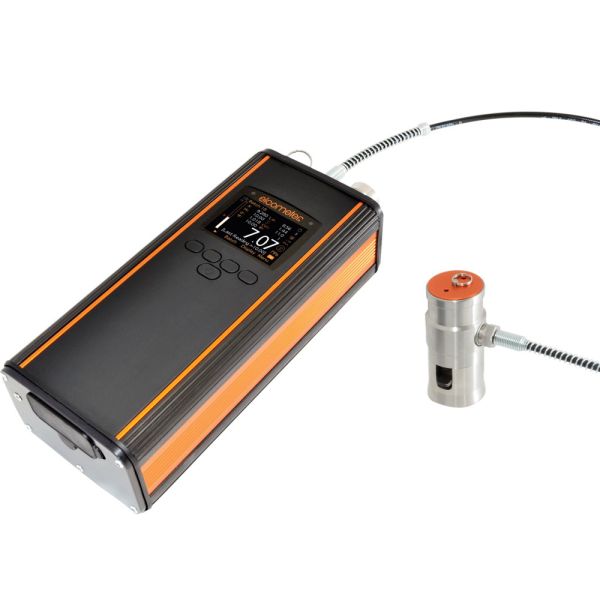

The Elcometer 510 Automatic Pull-Off Adhesion Gauge accurately measures the strength of the bond between the coating and the substrate.

•Automatic hydraulic pump ensures smooth and continuous pressure application for consistent, repeatable results
•Fully adjustable pull rates 0.1-1.4MPa/s (14.5-203psi) to meet National and International Standards
•Can be used with 10,14.2, 20 and 50mm diameter dollies
•User definable limits with unique pressure hold and release function
•User definable measurement range with an accuracy of ±1% of full scale:
10mm dolly: 100MPa (14400psi)
14.2mm dolly: 50MPa (7200psi)
20mm dolly: 25 MPa (3600psi)
50mm dolly: 4MPa (580psi)
•Dust and water resistant rugged design to IP64
•Interchangeable units: MPa, psi, Nmm2 and N
•A range of standard and thin substrate actuator skirts (compatible with Elcometer 506) available for testing coatings on thick, thin, flat or convex substrates
•Store up to 60,000 readings with individual pull graphs in up to 2,500 alpha numerical batches, complete with attribute failure information
•USB and Bluetooth® data output - Compatible with ElcoMaster™ App for iPhone, iPod, iPad and Android mobile devices

Technical Specification

Product Features
			Model S	Model T
Repeatable & reproducible measurements			•	•
Easy to use menu structure; multiple languages			•	•
Tough, impact, waterproof & dust resistant; equivalent to IP64			•	•
Bright LCD colour screen; with ambient light sensor			•	•
Scratch & solvent resistant display; 2.4” (6cm) TFT			•	•
Calibration certificate			•	•
2 year gauge warranty			•	•
Automatic rotating display; 0°, 180°			•	•
Data output via USB (Live readings - and batch)			•	•
Data output via Bluetooth^®				•
PC command; start & stop gauge from a PC with live readings (USB only)				•
Switchable Units (mPa, psi, N, Nmm^-2)			•	•
On-Screen Statistics (η, x, σ, hi, lo, COV, N>hi limit^♦)			•	•
Trend Graph			•	•
Pull Rate Graph (Load v Time)				•
Interchangeable Dolly Selection; 10, 14.2, 20 & 50mm			•	•
User Selectable Pull Rates; (Model S & Model T Standard Mode)⁺
10mm: 1.00, 2.00, 3.00, 4.00, 5.00 MPa/s 14.2mm: 0.4, 0.7, 1.4, 2.0, 2.5 MPa/s 20mm: 0.2, 0.3, 0.7,1.0, 1.2 MPa/s 50mm: 0.04, 0.08, 0.12, 0.16, 0.20 MPa/s	125, 200, 400, 600, 725psi/s 60, 100, 200, 300, 360psi/s 30, 50, 100, 150, 180psi/s 5, 8, 16, 24, 30psi/s		•	•
User Selectable Pull Rates; (Model T Advanced Mode)⁺
10mm: 0.4 - 5.60 MPa/s 14.2mm: 0.2 - 2.80 MPa/s 20mm: 0.1 - 1.40 MPa/s 50mm: 0.02 - 0.22 MPa/s	58 - 812psi/s 29 - 403psi/s 15 - 203psi/s 2 - 32psi/s	in 0.1MPa / 1psi steps in 0.1MPa / 1psi steps in 0.1MPa / 1psi steps in 0.01MPa / 0.1psi steps		•
User Selectable Limit & Limit Hold Time				•
Gauge Memory; maximum number of readings			60	60,000*
Number of Batches (Alpha Numeric - Model T)			1	2,500
Attribute Modes to meet National & International Standards				•
Display Modes
Readings, Selected Stats & Run Chart (last 20 readings)			•	•
Pull Rate Graphs				•
Batch Review				•
Power; Battery (B), AC Mains Power (M)			B	B, M
USB Cable & ElcoMaster™ 2.0 CD			•	•
Power Cable with Multi International Plug Adaptor (UK, EU, US, AUS)				•
Plastic Transit Case				•
Date & Time				•
In Field Adhesion Calibration Verfification Mode				•

^♦Model T only

* When ‘Rate Graph’ is enabled, the number of readings which can be stored is reduced depending on the graph resolution selected

⁺ Please refer to the User Guide for further information on all units

Part Number	Description			Certificate
F510-20S	Elcometer 510 Model S Automatic Adhesion Gauge; 20mm Kit			•
F510-20T	Elcometer 510 Model T Automatic Adhesion Gauge; 20mm Kit			•
F510-50S	Elcometer 510 Model S Automatic Adhesion Gauge; 50mm Concrete Kit			•
F510-50T	Elcometer 510 Model T Automatic Adhesion Gauge; 50mm Concrete Kit			•
Pressure Accuracy	±1% of full scale		Pull Rate Accuracy	±(2.5% + 0.3 seconds)
Pressure Resolution	0.01MPa (1 psi)		Pull Rate Resolution	0.01MPa (1psi/s)
Dolly Diameter	10mm (0.39”)	14.2mm (0.56”)	20mm (0.76”)	50mm (1.96”)
Operating Range	8 to 100 MPa (1200 to 14400 psi)	4 to 50 MPa (600 to 7200 psi)	2 to 25 MPa (300 to 3600 psi)	0.3 to 4 MPa (50 to 580 psi)
Pull Rate Range	0.4 - 5.6MPa/s (58 - 812psi/s)	0.2 - 2.8MPa/s (29 - 403psi/s)	0.1 - 1.4MPa/s (15 - 203psi/s)	0.02 - 0.22MPa/s (2 - 32psi/s)
Gauge Dimensions	260 x 100 x 66mm (6.3 x 3.9 x 2.6”)
Actuator Height	85mm (3.4”)	85mm (3.4”)	85mm (3.4”)	110mm (4.3”)
Instrument Weight	2.9kg (6.4lb)	2.9kg (6.4lb)	2.9kg (6.4lb)	3.1kg (8.3lb)
Kit Weight	-	-	6.1kg (13.5lb)	7.3kg (16.1lb)
Power Supply	8 x AA NiMH/Alkaline batteries (16 rechargeable batteries supplied complete with charger) or AC mains power (Model T only)
Battery Life	~200 pulls per charge up to 25MPa (3600psi) at 1MPa/s (150psi/s), recharge time less than 5 hours
Packing List: 20mm Kit	Elcometer 510 Adhesion Tester with 20mm dollies (x10), standard skirt for 20mm dollies, 20mm dolly cutter handle, 20mm dolly cutter, Araldite standard two part epoxy adhesive (2 x 15ml tubes), abrasive pad, shoulder harness, carry case, 16 x AA MiMH rechargeable batteries & charger (UK, EU, US, AUS), mains power supply (UK, EU, US, AUS) (Model T), ElcoMaster™ CD & USB cable, calibration certificate and operating instructions.
Packing List: 50mm Kit	Elcometer 510 Adhesion Tester with 50mm dollies (x6), standard skirt for 50mm dollies, 50mm dolly cutter arbor, 50mm dolly cutter, Araldite standard two part epoxy adhesive (2 x 15ml tubes), abrasive pad, shoulder harness, carry case, 16 x AA MiMH rechargeable batteries & charger (UK, EU, US, AUS), mains power supply (UK, EU, US, AUS) (Model T), ElcoMaster™ CD & USB cable, calibration certificate and operating instructions.

• Calibration Certificate supplied as standard.

Standards:

ASTM C1583, ASTM D4541, ASTM D7234-12, AS/NZS 1580.408.5, BS 1881-207, DIN 1048-2, EN 1015-12,
EN 12636, EN 13144, EN 1348, EN 1542, EN 24624, ISO 16276-1, ISO 4624, NF T30-606, NF T30-062

T

Product Brochures

Dolly Diameter	Pack of 10*	Pack of 100
10mm (0.39”)	T5100010AL-10	T5100010AL-100
14.2mm (0.56”)	T9990014AL-10	T9990014AL-100
20mm (0.76”)	T9990020AL-10	T9990020AL-100
50mm (1.96”)	T9990050AL-4	-
50mm (1.96”) Stainless Steel	T9990050SS-4	-

Diameter	Standard Skirt	Thin Substrate Skirt
10mm (0.39”)	T9991420S	-
14.2mm (0.56”)	T9991420S	T9990014T
20mm (0.76”)	T9991420S	T9990020T
50mm (1.96”)	T9990050S	-
50mm (1.96”) Stainless Steel	-	-


	Part Number	Description
	T99923924	Elcometer AVU Adhesion Verification Unit
	T99923924C	Elcometer AVU Adhesion Verification Unit - Certified

	Dolly Cutter Handle	Dolly Cutter
10mm (0.39”)	-	-
14.2mm (0.56”)	T9991420H	T9990014CT
20mm (0.76”)	T9991420H	T9990020CT
50mm (1.96”)	T9990050H	T9990050CT
50mm (1.96”) Stainless Steel	-	-

Part Number	Description
T99923147	Dolly Cleaning Heating Tongs - EUR 220V / UK 240V
T99923103	Dolly Cleaning Heating Tongs - US 110V (No Plug)
