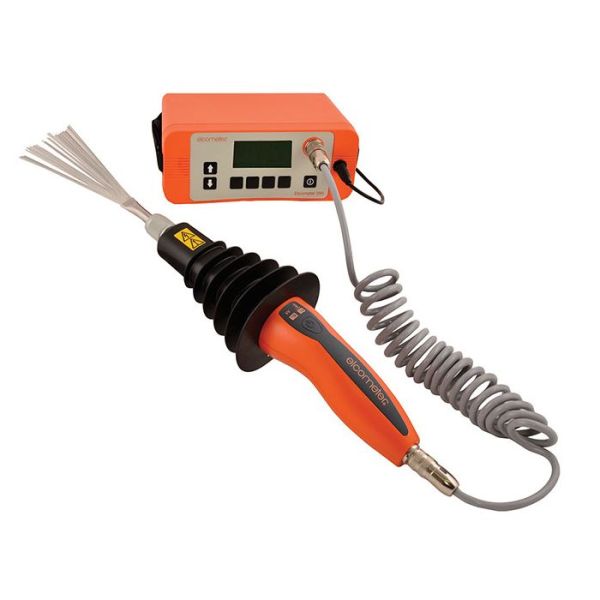

Elcometer 266 Holiday Detector
€2,210.31
€1,797.00
The Elcometer 266 Holiday Detector revolutionises high voltage DC testing of coatings porosity detection making it safer, easier and more reliable than ever before.
User Friendly: The voltage calculator automatically sets the correct voltage from your coating thickness value. No need to use look up tables.
Safe: Featuring a dual safety switch on the handle to avoid accidental switch on and specialised ribbing, the Elcometer 266 Holiday Detector provides superior protection.
Versatlie: To change the maximum voltage range, select a different handle; 5kV, 15kV or 30kV DC or 30kV DC continuous.

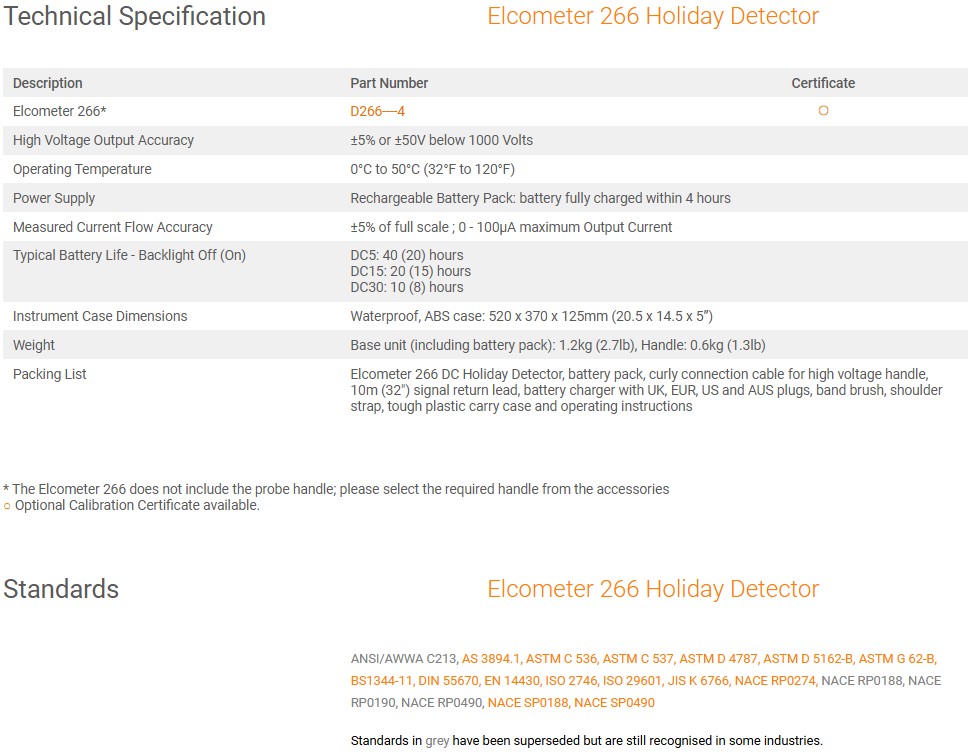

For further technical specifications, please see the attached datasheet.
Availability:
In stock
SKU
D266-4C
Summary:
The Elcometer 266 holiday detector can be used to test porosity on coatings up to 7.5mm (300 mils) thick and is ideal for inspecting coatings on pipelines and other protective coatings. This holiday tester features a built-in voltage calculator which will determine and set the correct test voltage based upon the test standard and the thickness of the coating being tested.
Key Features:

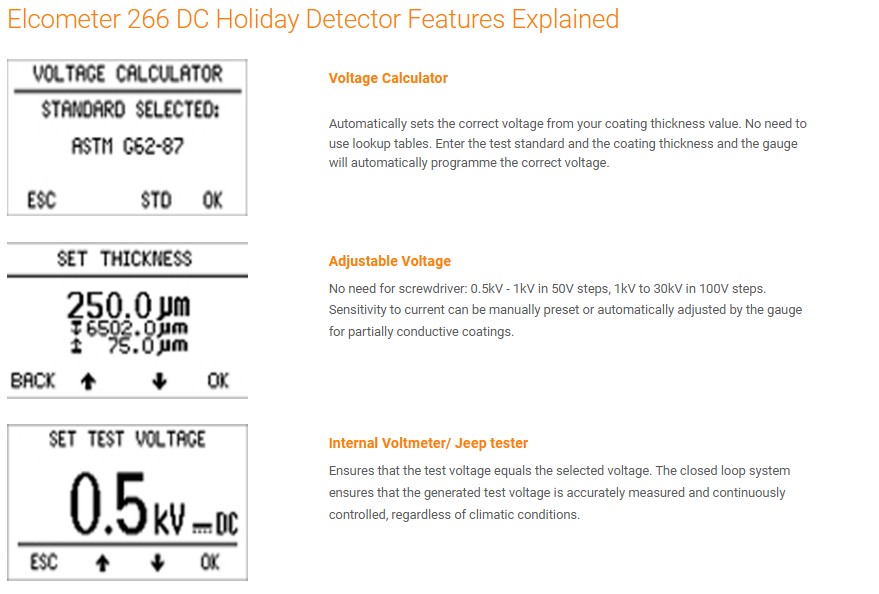

- the voltage calculator automatically sets the correct voltage from your coating thickness value
- Adjustable Voltage: 0.5kV - 1kV in 50V steps 1kV to 30kV in 100V steps
- Dual safety switch on the handle to avoid accidental switch on (Grey/orange probe handles only)
- Internal Voltmeter/ Jeep tester ensures that the test voltage equals the selected voltage
- Visual and audible alarms, Bright LEDs on the handle, as well as a loud buzzer, clearly indicate when a holiday is detected

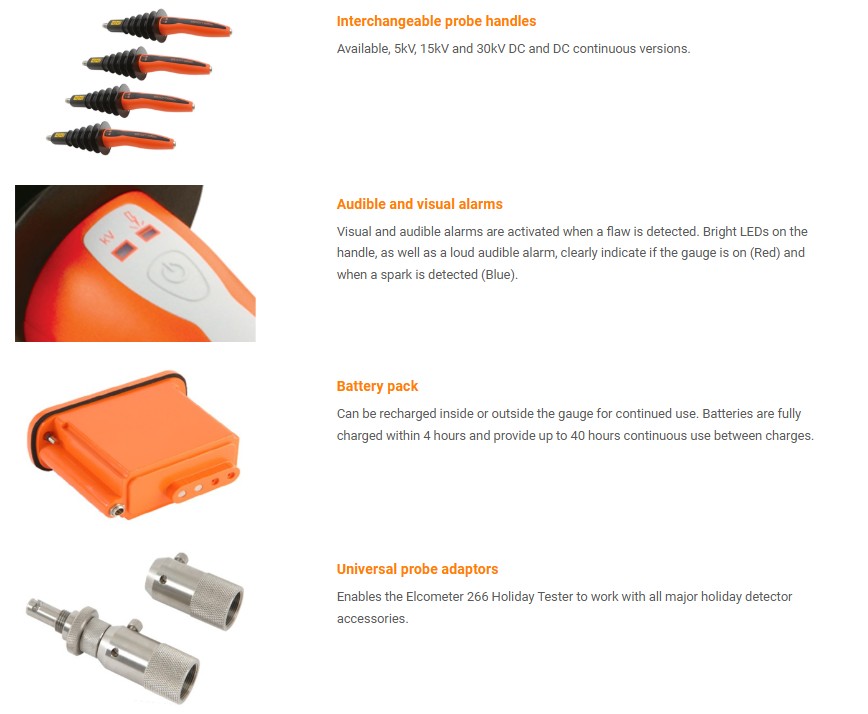

- To change the maximum voltage range, select a different handle; 5kV, 15kV or 30kV DC or 30kV DC continuous
- A wide range of probe brushes and rolling springs available
