Elcometer MTG4 Ultrasonic Material Thickness Gauge + TCX5M00CP-4 Transducer
€1,783.50
€1,450.00

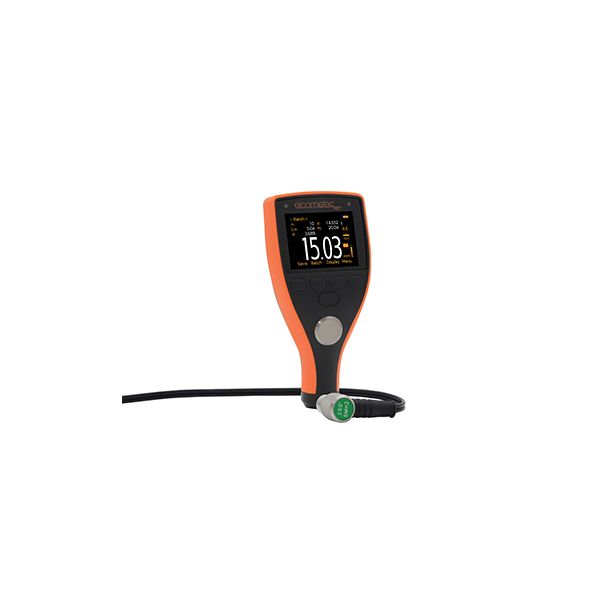

Elcometer MTG4 Ultrasonic Material Thickness Gauge
With a choice of calibration options and measurement modes, the MTG4 is ideal for taking readings on a wide range of coated and uncoated materials.
Supplied with TXC5M00CP-4 c/w Gauge & Transducer Calibration Certificate
As well as all the features of the MTG2, the MTG4 has two calibration options. Using an uncoated sample of test material of a known thickness, the gauge can be calibrated using 1-Point calibration. Alternatively, the user can select one of 39 pre-set materials stored within the gauge including; aluminium, steel, stainless steel, cast iron, plexiglass, PVC, polystyrene and polyurethane.
Availability:
In stock
SKU
MTG4
The Elcometer range of ultrasonic material thickness gauges has been designed specifically to be easy to use, calibrate, take readings and create inspection reports.
With a wide range of measurement modes including: Pulsed Echo (PE), Echo Echo ThruPaint™ (EE) and Velocity Mode (VM), and a wide range of intelligent dual element transducers, the new ultrasonic thickness gauges can measure the material thickness of virtually any material such as metals, plastics, glass, epoxies and ceramics.
Ideal for measuring material thickness when only one side of the material is accessible, the ultrasonic thickness gauges can measure the material thickness and sound velocity of coated and uncoated surfaces.
From a steel thickness gauge to a gauge which ignores the thickness of the coating, Elcometer has a complete range of ultrasonic thickness gauges to meet your specific requirements.
The MTG2 is supplied complete with 5MHz, ¼” transducer and is pre-calibrated for measuring on steel only with a thickness range of up to 500mm (20”) in Pulsed-Echo (P-E) mode. Compatible with ElcoMaster® software, individual readings can be downloaded via USB to PC or similar device for further analysis.
Features:
- Pulsed-Echo (P-E) measurement Mode
- Pre-calibrated for measuring on steel only
- Pre-set measurement rate of 4 readings per second
- USB data output to PC or similar device
Technical Specification:
