Olson CTG-2 CONCRETE THICKNESS GAUGE
€4,612.50
€3,750.00
Olson Instruments offers an Impact-Echo device, (Concrete Thickness Gauge, Model CTG-2). This hand-held instrument tests concrete slab thickness and integrity. The CTG-2 is an easy to use, battery-powered, device.
CTG-2 applications include:
- Elevated Slabs (i.e. Bridge Decks, Parking Garages).
- Slabs on Grade (i.e. Roads, Runways & Floors).
- Walls & Precast Panels.
- Ceilings.
- Tunnel Linings & Concrete Pipe.
- Columns & Beams.
- Foundations (thicknesses up to 1.82m).
No need to drill, core or excavate to determine concrete slab thickness.
Meets ASTM Standard C1383-04(10).
Price does not include tablet / laptop
Availability:
In stock
SKU
CTG-2

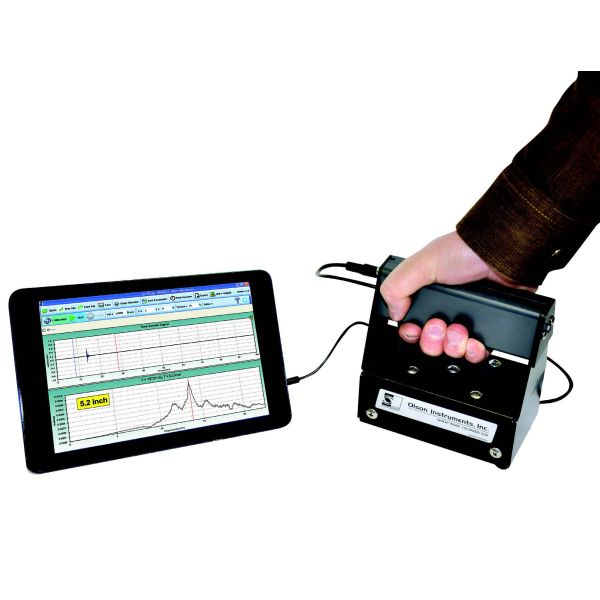

Requires no special knowledge or training – connect the CTG-2 to your laptop or tablet and start testing with Olson’s WinCTG2 software. For greater accuracy, calibrate the unit at a location of known thickness to obtain the concrete velocity for that job.
CTG-2 Specs & Features
| Thickness Range |
0.080 to 0.508m instandard mode 0.508 to 1.800 in thick mode |
| Accuracy | +/-2% when calibrated on a known thickness |
| Frequency Resolution | 10Hz |
| Sampling Rate | 45,454 samples/second |
| Numbers of Samples Acquired per Test | 4,545 |
| Maximum Nyquist Frequency | 22,700 Hz |
| Weight |
2.3 Kg shipping weight 0.5 Kg Test Head |
| Cable Length for Test Head | 0.910m |
| Software Features |
Automatic Thickness Picking Manual Thickness Picking Concrete Velocity Calibration Time & Spectral Data: Displays for Data QA |
| Power | CR123A 3V long life lithium batteries |
| Report Capability |
Use X and Y coordinates to set up a test grid Generate a thickness summary table exported to most spreadsheets in comma seperated format |
| Data Collection | Works with most Windows 7-10 devices |
Determines Thickness Based on Impact Echo Principle
Features
- Ruggedized, hand-held test head with integrated displacement transducer and solenoid impactor.
- No coupling agents required for use of test head on concrete
- Works on cured, hardened concrete of an elevated deck or on grade
- Works through paint, epoxy, and most types of bonded ceramic tile
- Switch between English (inches) or Metric (millimeters) units with the click of a button
- Easy velocity calibration at known thickness location, or use Olson’s default parameters
- Thickness data table can be imported into most spreadsheet programs
- Save results for later review
*To test concrete and acquire data, the CTG-2 system must be used with a OlsonEngineering.com Windows 7-10 computer or tablet running Olson Instrument’s WinCTG2 software. The required computer or tablet must be provided by the user.
