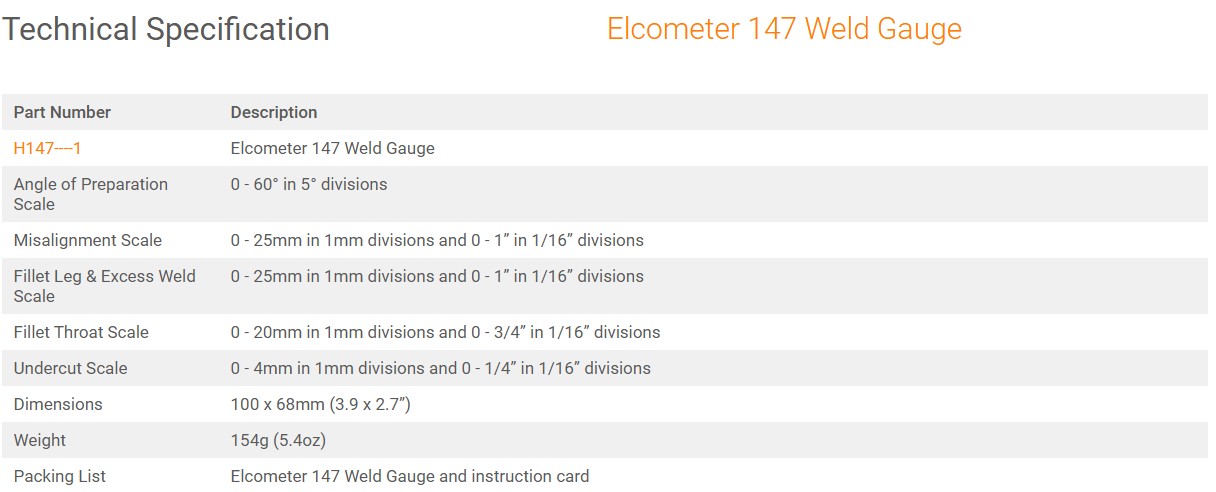

Elcometer 147 Weld Gauge

The Elcometer 147 Weld Gauge measures many aspects of welds in both Metric and Imperial units.

The Elcometer 147 Weld Gauge includes:

• angle of preparation 0 to 60°
• misalignment (high - low) fillet weld throat size
• fillet weld length
• 2mm (0.79”) edge roundness test
• excess weld metal (capping size)
• depth of undercut
• depth of pitting
• general linear measurements up to 60mm (2”)
