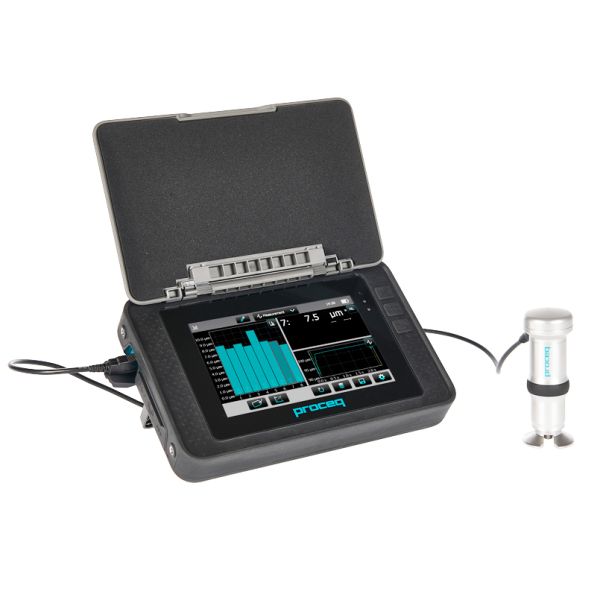

Proceq Equotip 550 Portable Rockwell
€0.00
€0.00
The most versatile all-in-one solution for portable hardness testing. The new Equotip 550 combines the Leeb and Portable Rockwell methods and will be directly compatible with upcoming developments.
Availability:
In stock
SKU
356 10 004
Proceq Equotip 550 Portable Rockwell
Applications
•Precise metal hardness testing of very soft materials through to very hard materials
•Thin parts, profiles and pipes of a wall thickness ≤ 2 mm, sheets, coiled metal, as well as parts as thin as 0.2 mm (0.008”), depending on the hardness level
•Testing on scratch-sensitive or polished surfaces
•Metal hardness testing of heat-affected zones near welding seams
Proceq offers accessories such as a measuring clamp or several support feet adapt to freehand hardness measurements on various test piece geometries.
The most versatile all-in-one solution for portable hardness testing. The new Equotip 550 combines the Leeb and Portable Rockwell methods and will be directly compatible with upcoming developments. The new generation Touchscreen Unit leverages the high measuring accuracy with an unmatched user experience leading to increased measurement efficiency:
- Elaborated user interface designed by industry experts for smooth operation
- Touchscreen features simplify and improve usability in combination with a high resolution display
- Personalized screens allow to arrange information and views according to the user’s needs
- Special housing and protected hardware connections to be used on-site (IP 54)
Unique Features - Outstanding Advantages
The instrument offers a unique range of functions which ultimately help to speed up on-site and laboratory inspections:
- Automatic on-site correlation of Leeb to Portable Rockwell true indention hardness value
- Guiding wizards increase process reliability and improve measurement precision
- Customized measurement reports through a modular configuration
- Create, edit and verify material conversion curves directly on the instrument
- and many more
Equotip 550 Portable Rockwell consisting of Equotip Touchscreen incl. Battery, Equotip Portable Rockwell Probe 50 N, Protective Rubber Sleeve, Probe Cable, Test Block ~62HRC, Power Supply, USB-Cable, Surface Roughness Comparator Plate, DVD with Software, Documentation, Carrying Strap and Carrying Case
Equotip Portable Rockwell
- Measurements in HRC and HV with automatic integrated conversions to HB, HRA, HRB and many more common scales in compliance to ASTM E140 and ISO 18265
- Highly accurate ± 0.8 µm (~ ± 1.0 HRC) over entire range
- Rapid and reproducible metal hardness readings independent of the material and sample dimensions
- Small test load yields small penetrations of only a few μm
- Unique measuring clamp and support feet are available for the probe allowing the test to be carried out on various geometries
- Advanced algorithm option for faster measurement
- Probe can be connected directly to PC
Equotip 550 Touchscreen Unit
- Modular concept: Flexible configuration for various industry applications with a wide range of probes and accessories
- Combined method: Automatic on-site correlation of Leeb to Portable Rockwell true indention hardness value
- Guiding wizards: Predefined workflows to increase process reliability and to improve measurement precision
- Automatic verification: Step by step verification in line with ISO 16859 and ASTM A956
- Interactive guides: On-screen notifications to obtain the most relevant settings for your application
- Conversion curves: Create, edit and verify material conversion curves directly on the instrument
- Custom reports: Modular generator allows customized measurement reports
- Automation option: Integration of NDT automation into quality management systems and automated testing environments
- Housing specially designed to be used on-site in harsh environments (IP 54), including carrying strap, integrated stand and sunshield cover
- High resolution color display
- Battery lifetime of > 8h
- 8 GB Flash memory
- Dual core processor supporting diverse communication and peripheral interfaces: Probe Connector, USB Host, USB Device and Ethernet
- Future proof investment through direct compatibility with upcoming developments
Standards
- DIN 50157
Guidelines
- DGZfP Guideline MC 1
- VDI / VDE Guideline 2616 Paper 1
|
Instrument: |
|
| Display | 7” color display 800x480 pixels |
| Memory | Internal 8 GB Flash memory (up to 1’000’000 measurements) |
| Regional settings | Metric and Imperial units, multi-language and timezone supported |
| Battery | Lithium Polymer, 3.6 V, 14.0 Ah |
| Battery lifetime | > 8h (in standard operating mode) |
| Power input |
12 V +/-25 % / 1.5 A |
| Weight (of display device) | About 1525 g (incl. Battery) |
| Dimensions | 250 x 162 x 62 mm |
| Max. altitude | 2’500 m above sea level |
| Humidity | < 95 % RH, non condensing |
| Operating temperature | 0°C to 30°C (32 to 86°F) (Charging, running instrument) 0°C to 40°C (32 to 104°F) (Charging, instrument is off) -10°C to 50°C (14 to 122°F) (Non-charging) |
| Environment | Suitable for indoor & outdoor use |
| IP classification | IP 54 |
| Pollution degree | 2 |
| Installation category | 2 |
|
|
|
| Dimensions | 112.5 x o 42 mm (4.4 x o 1.6 inches) |
| Weight | 260 g (9.17 oz) |
| Power supply | Via USB (5 V, max. 100 mA) |
| Measuring range | 0-100 µm; 19-70 HRC; 34-1080 HV |
| Measuring accuracy | 1.5 HRC according to DIN 50157 |
| Resolution |
0.1 µm; 0.1 HRC; 1 HV |
| Test direction | Any direction (no correction required) |
| Test loads | 10 N / 50 N (probe 50 N) |
| Diamond indenter | Angle 100.0° +/- 0.5° |
| Operating temperature | 0°C to 50°C (32 to 122 °F) |
| Humidity | Non-condensing, 90% max. |
Warranty
- Standard 2-year limited warranty on electronic parts
- Optional extended warranty periods up to 3 additional years
