TIGHTNESS TESTING OF ALL CHIMNEY CLASSES AND FLUE GAS SYSTEMS

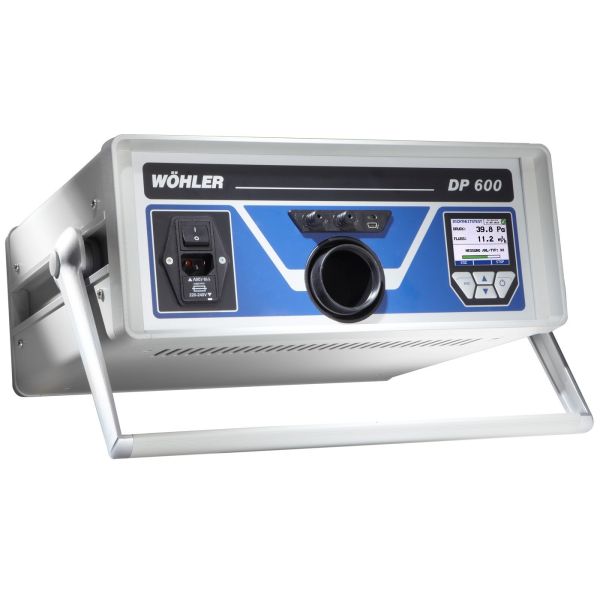

The Wöhler DP 600 checks the tightness of exhaust ducts and chimneys. The menu enables the user to select between the different installation types. The Wöhler DP 600 regulates automatically the pressure which is necessary for the flue gas systems type P1 (exhaust ducts), H1 (combined heat and power plants, exhaust ducts with high pressure), N1 and N2 (chimneys) and determines the leakage rate automatically. It also disposes of a variable mode which allows the user to select the test pressure and the leakage rate. This way, tightness tests of ventilation systems or flue gas systems type P2 or H2 are also possible. A thermal fast printer can print all results.
CONFIRMATION OF A SUFFICIENT COMBUSTION AIR SUPPLY
New: Also suitable for the confirmation of a sufficient combustion air supply according to DVGW 625 („simple procedure“ and „detailed procedure“) with the necessary differential pressure test (4 Pa test). No auxiliary measuring instrument will be necessary. The Wöhler DP 600 simulates the combustion air inlet of a fireplace. After the user has entered the capacity of the fireplace, the Wöhler DP 600 will produce automatically the corresponding volume flow which passes through the chimney and will register the pressure progression in the room.
TIGHTNESS TESTING
with leakage rates up to 200.00 m³/h
EXTENDED PRESSURE RANGE
up to ±7,000 Pa
TIGHTNESS CLASSES PRESET
for flue gas systems N, P and H according to EN 1443
4 / 8 PA-TEST
without any auxiliary measuring instrument
VARIABLER MODUS
Mit frei wählbarem Druck- und Leckagegrenzwert
INTEGRATED MEMORY
for up to 100 measurement records
USB INTERFACE
for the PC
IRDA INTERFACE
for the printer
ADDITIONAL INFORMATION
for tightness testing of chimneys and flue gas systems and for 4 Pa-test
Scope of supply:
Wöhler DP 600
mains cable EU plug
adapters for all tightness tests of fluegas systems
